Description

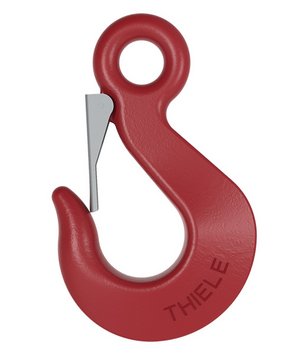

Eye Sling Hook with Safety Latch
The grade 80 eye sling hooks TWN 0855/1 are used to assemble chain slings. The lifting chains are assembled by using connecting links, e.g. THI-LOK®s TWN 1320. The safety latch prevents unintentional detachment from the load. The sling hooks comply with the DIN EN 1677-2.
| Trade Size | Article-No. | Working Load Limit [t] |
Dimensions
[mm] |
Weight app. [kg] |
CAD
STEP |
CAD
IGES |
|||||
| e | d1 | g | h | c | d2 | ||||||
| 36-8 | Z06159 | 40.00 | 388 | 72 | 90 | 103 | 78 | 44.5 | 32.30 | Download | Download |
| 40-8 | Z06160 | 50.00 | 442 | 84 | 103 | 116 | 89 | 50.5 | 47.00 | Download | Download |
| 45-8 | Z06161 | 63.00 | 494 | 90 | 114 | 130 | 99 | 56 | 64.40 | Download | Download |
| 50-8 | Z06162 | 80.00 | 610 | 102 | 131 | 145 | 110 | 63 | 81.90 | Download | Download |
