Description

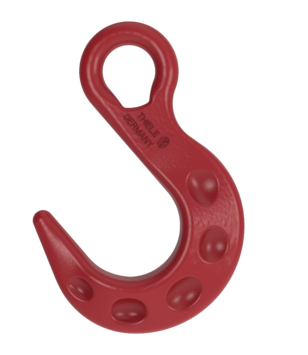

Eye Foundry Hooks
The grade 80 eye foundry hooks TWN 0856 are used to assemble chain slings, primarily for foundries. The associated lifting chains are assembled by using connecting links, e.g. THI-LOK®s TWN 1320.
The manufacturing and testing requirements comply with the DIN EN 1677-1.
| Trade Size | Article-No. | Working Load Limit [t] |
Dimensions
[mm] |
Weight app. [kg] |
CAD
STEP |
CAD
IGES |
||||||||
| b | c | d1 | d2 | d3 | e | f | g | h | ||||||
| 6-8 | F32354 | 1.12 | 93 | 20 | 21 1) | 12 | 12 | 108 | – | 50 | 24 | 0.45 | Download | Download |
| 7/8-8 | F32364 | 2.00 | 127 | 26 | 28 1) | 15 | 14 | 135 | – | 66 | 33 | 0.97 | Download | Download |
| 10-8 | F32374 | 3.15 | 144 | 33 | 32 1) | 17 | 18 | 161 | – | 76 | 35 | 1.56 | Download | Download |
| 13-8 | F32384 | 5.30 | 175 | 38 | 42 1) | 21 | 21 | 196 | – | 89 | 42 | 2.96 | Download | Download |
| 16-8 | F32394 | 8.00 | 204 | 45 | 54 1) | 23 | 23 | 229 | – | 102 | 48 | 4.71 | Download | Download |
| 18/20-8 | F32404 | 12.50 | 236 | 59 | 59 | 27 | 27 | 259 | 70 | 114 | 63 | 7.95 | Download | Download |
| 22-8 | F32414 | 15.00 | 264 | 65 | 65 | 30 | 30 | 288 | 78 | 127 | 70 | 11.00 | Download | Download |
| 26-8 | F32424 | 21.20 | 284 | 75 | 76 | 33 | 35 | 329 | 89 | 136 | 81 | 16.49 | Download | Download |
| 32-8 | F32444 | 31.50 | 333 | 83 | 85 | 42 | 42 | 358 | 100 | 152 | 96 | 26.20 | Download | Download |
| 1) With circular eyelet | ||||||||||||||
