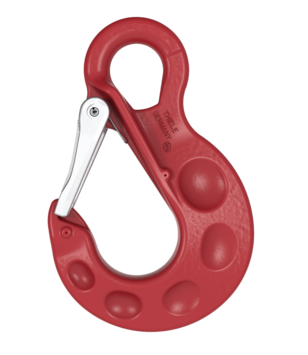

SOLIDO Eye Sling Hooks with forged Safety Latch
The grade 80 eye sling hooks TWN 0858/1 are used to assemble standard chain slings. The lifting chains are assembled by using connecting links, e.g. THI-LOK®s TWN 1320. The forged safety latch prevents an unintentional detachment from the load.
The sling hooks comply with the DIN EN 1677-2.
| Trade Size | Article-No. | Working Load Limit [t] |
Dimensions
[mm] |
Weight app. [kg] |
CAD
STEP |
CAD
IGES |
||||||
| e | d1 | d2 | g | h | c | f | ||||||
| 6-8 | F329010 1) | 1.12 | 92 | 21 | 11 | 20 | 20 | 17 | – | 0.36 | Download | Download |
| 7/8-8 | F329110 1) | 2.00 | 118 | 28 | 14 | 27 | 25 | 20 | – | 0.76 | Download | Download |
| 10-8 | F329210 1) | 3.15 | 146 | 36 | 18 | 34 | 32 | 29 | – | 1.50 | Download | Download |
| 13-8 | F329310 1) | 5.30 | 168 | 42 | 21 | 41 | 41 | 35 | – | 2.55 | Download | Download |
| 16-8 | F329410 1) | 8.00 | 210 | 54 | 25 | 48 | 50 | 41 | – | 4.65 | Download | Download |
| 18/20-8 | F329510 1) | 12.50 | 244 | 58 | 27 | 59 | 59 | 51 | – | 7.60 | Download | Download |
| 22-8 | F329710 1) | 15.00 | 271 | 65 | 30 | 68 | 62 | 55 | – | 10.20 | Download | Download |
| 26-8 | F329810 | 21.20 | 302 | 70 | 33 | 74 | 71 | 60 | 81 | 15.00 | Download | Download |
| 32-8 | F329910 | 31.50 | 350 | 80 | 38 | 90 | 84 | 70 | 99 | 24.30 | Download | Download |
| 1) With circular eyelet | ||||||||||||
