Clevis Foundry Hooks

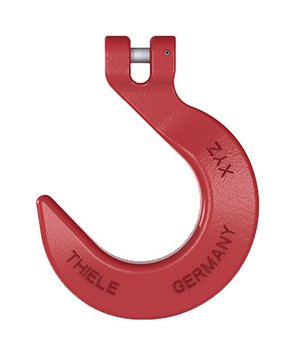

The grade 80 clevis foundry hooks TWN 0859 are used to assemble chain slings, primarily for foundries.
The manufacturing and testing requirements comply with the DIN EN 1677-1.
| Trade Size | Article-No. | Working Load Limit [t] |
Dimensions
[mm] |
Weight app. [kg] |
CAD
STEP |
CAD
IGES |
|||
| e | g | h | c | ||||||
| 8-8 | F33310 | 2.00 | 110 | 66 | 33 | 27 | 1.12 | Download | Download |
| 10-8 | F33320 | 3.15 | 133 | 76 | 35 | 32 | 1.61 | Download | Download |
| 13-8 | F33330 | 5.30 | 159 | 89 | 41 | 38 | 3.40 | Download | Download |
| 16-8 | F33340 | 8.00 | 189 | 102 | 48 | 45 | 5.50 | Download | Download |
| 20-8 | F33355 | 12.50 | 217 | 114 | 54 | 51 | 9.00 | Download | Download |
| 22-8 | F33360 | 15.00 | 244 | 124 | 60 | 56 | 12.00 | Download | Download |
