S-Hooks

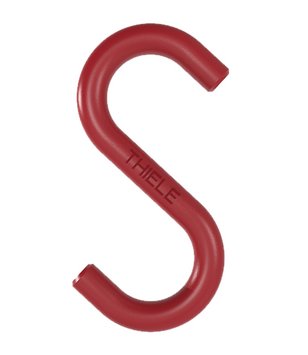

The grade 80 S-hooks TWN 0860 can be used universally for lifting of loads, also in combination with chain slings.
The manufacturing and testing requirements are based on the DIN EN 1677-1.
| Trade Size | Article-No. | Working Load Limit [t] |
Dimensions
[mm] |
Weight app. [kg] |
CAD
STEP |
CAD
IGES |
|||
| e | g | t | d | ||||||
| F18130 | 0.15 | 80 | 28 | 30 | 10 | 0.12 | Download | Download | |
