Description

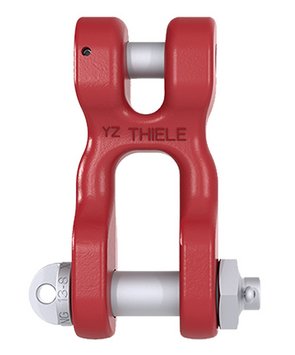

Special Chain Coupling Links with Bolts, Nut and Pin
The grade 80 special chain couplings with bolts, nut and roll pin TWN 0862 are used as end fittings in chain slings. The clevis design enables the direct attachment to the lifting chain. The special chain couplings may also be mounted directly on straps and traverses.
The manufacturing and testing requirements are based on the DIN EN 1677-1.
| Trade Size | Article-No. | Working Load Limit [t] |
Dimensions
[mm] |
Weight app. [kg] |
CAD
STEP |
CAD
IGES |
|||||
| e | d | c | f | b1 | b2 | ||||||
| 10-8 | F30600 | 3.15 | 65 | 16 | 32 | 37 | 21 | 47 | 0.66 | Download | Download |
| 13-8 | F30610 | 5.30 | 83 | 20 | 40 | 49 | 27 | 62 | 1.31 | Download | Download |
| 16-8 | F30620 | 8.00 | 100 | 24 | 48 | 57 | 34 | 76 | 2.33 | Download | Download |
| 18-8 | F30630 | 10.00 | 116 | 30 | 60 | 64 | 42 | 97 | 4.29 | Download | Download |
