Description
Pipe Transport Hooks

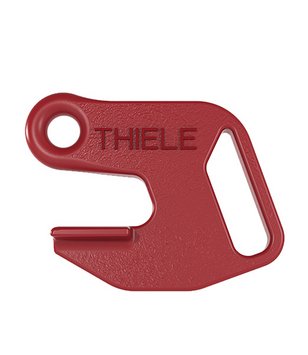

The grade 80 pipe transport hooks TWN 0868 are used as forged end fittings in 2-leg chain slings to lift pipes. The lifting chains are assembled by using connecting links, e.g. THI-LOK®s TWN 1320.
The manufacturing and testing requirements are based on the DIN EN 1677-1.
| Trade Size | Article-No. | Working Load Limit [t] |
Dimensions
[mm] |
Weight app. [kg] |
CAD
STEP |
CAD
IGES |
||||||
| b | a | d1 | d2 | g | h | c | ||||||
| 13-8 | F32608 | 5.30 | 174 | 226 | 28 | 20 | 49 | 57 | 60 | 3.10 | Download | Download |
| 22-8 | F32641 | 15.00 | 274 | 345 | 44 | 30 | 80 | 90 | 95 | 14.62 | Download | Download |
| May only be used in pairs at inclination angle ? = 0-45° | ||||||||||||
