Description

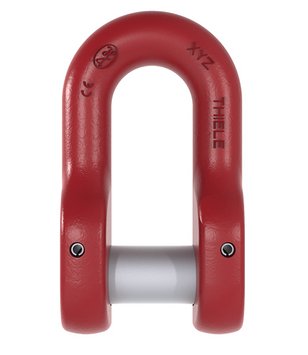

Special Bolt Shackles
The Grade 80 special shackles with bolt TWN 0870 are used as end fittings in chain slings. The shackles can be mounted directly on straps and traverses. The dimensions of the special shackles comply with DIN 82101.
The manufacturing and testing requirements are based on DIN EN 1677-1.
| Trade Size | Article-No. | Trade Size
[DIN 82101] |
Working Load Limit [t] |
Dimensions
[mm] |
Weight app. [kg] |
CAD
STEP |
CAD
IGES |
|||||
| h1 | d1 | d2 | d4 | b1 | b2 | |||||||
| 10-8 | F30311 | 1 | 3.15 | 49 | 15 | 32 | 16 | 21 | 47 | 0.35 | Download | Download |
| 13-8 | F30321 | 1.6 | 5.30 | 61 | 19 | 40 | 20 | 27 | 61 | 0.71 | Download | Download |
| 16-8 | F30331 | 2.5 | 8.00 | 73 | 23 | 48 | 24 | 33 | 75 | 1.26 | Download | Download |
| 18/20-8 | F30341 | 4 | 12.50 | 91 | 29 | 60 | 30 | 42 | 96 | 2.60 | Download | Download |
| 22-8 | F30351 | 5 | 15.00 | 111 | 33 | 72 | 36 | 47 | 107 | 4.00 | Download | Download |
| 26-8 | F30361 | 6 | 21.20 | 120 | 37 | 78 | 39 | 53 | 121 | 5.70 | Download | Download |
| 28-8 | F30371 | 8 | 25.00 | 140 | 41 | 90 | 45 | 60 | 136 | 10.00 | Download | Download |
| 32-8 | F30381 | 10 | 31.50 | 147 | 45 | 96 | 48 | 66 | 150 | 10.50 | Download | Download |
| 36-8 | F30391 | 12 | 40.00 | 158 | 50 | 104 | 52 | 73 | 167 | 13.90 | Download | Download |
| 40-8 | F30401 | 16 | 50.00 | 185 | 55 | 120 | 60 | 81 | 185 | 20.50 | Download | Download |
| 45-8 | F30411 | 20 | 63.00 | 211 | 61 | 136 | 68 | 90 | 206 | 28.09 | Download | Download |
