Plate Hooks for Basket Chains

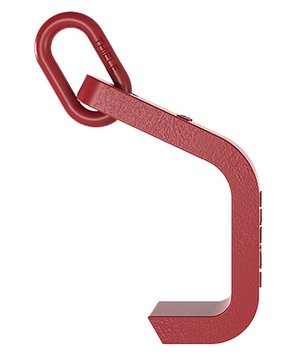

The grade 80 plate hooks with intermediate link TWN 0872 are used as end fittings of chain slings for the horizontal transportion of thick-walled sheet metals in steel constructions. The intermediate links enable the connection of additional slings. The hooks are used in 2-leg basket chain slings, the max. inclination angle is ? = 30°.
The manufacturing and testing requirements are based on the DIN EN 1677-1.
| Trade Size | Article-No. | Working Load Limit 15° < ? ? 30° [t] |
Dimensions
[mm] |
Weight app. [kg] |
CAD
STEP |
CAD
IGES |
|||||
| e | b | c | d | f | h | ||||||
| 6-8 | F35500 | 1.60 | 221 | 90 | 60 | 16 | 60 | 20 | 2.50 | Download | Download |
| 8-8 | F35501 | 2.80 | 244 | 90 | 90 | 16 | 70 | 25 | 4.00 | Download | Download |
| 10-8 | F35502 | 4.25 | 332 | 140 | 95 | 18 | 80 | 30 | 10.08 | Download | Download |
| 13-8 | F35503 | 7.50 | 360 | 145 | 105 | 22 | 90 | 35 | 11.00 | Download | Download |
| 16-8 | F35504 | 11.20 | 404 | 155 | 120 | 26 | 110 | 45 | 16.80 | Download | Download |
| 20-8 | F35505 | 17.00 | 445 | 175 | 130 | 32 | 120 | 55 | 30.00 | Download | Download |
| 22-8 | F35506 | 21.20 | 510 | 205 | 135 | 36 | 140 | 60 | 40.30 | Download | Download |
| 26-8 | F35507 | 30.00 | 560 | 230 | 145 | 45 | 160 | 70 | 61.50 | Download | Download |
| 32-8 | F35508 | 45.00 | 621 | 255 | 160 | 50 | 180 | 85 | 85.50 | Download | Download |
| May only be used in pairs at inclination angle ? = 15-30° | |||||||||||
