Description
Balancers

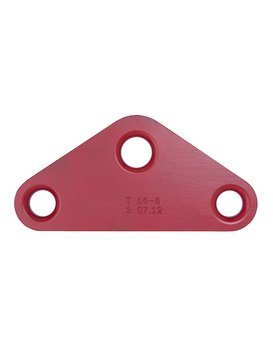

The grade 80 balancers TWN 0882 are used for even load distribution in multi-leg chain slings. A length compensation of different strand lengths is achieved.
The manufacturing and testing requirements are based on the DIN EN 1677-1.
| Trade Size | Article-No. | Working Load Limit [t] |
Breaking Force
[kN] min. |
Dimensions
[mm] |
Weight app. [kg] |
CAD
STEP |
CAD
IGES |
|||||||
| 0° < ? ? 45° | 45° < ? ? 60° | e | a | d1 | d2 | b | c | f | ||||||
| 6-8 | F48300 | 1.60 | 1.12 | 71 | 42 | 100 | 14 | 18 | 8 | 11 | 10 | 0.40 | Download | Download |
| 8-8 | F48303 | 2.80 | 2.00 | 124 | 56 | 130 | 18 | 22 | 10 | 15 | 12 | 0.80 | Download | Download |
| 10-8 | F48306 | 4.25 | 3.15 | 200 | 70 | 160 | 22 | 28 | 13 | 19 | 15 | 1.50 | Download | Download |
| 13-8 | F48309 | 7.50 | 5.30 | 340 | 91 | 210 | 28 | 40 | 16 | 25 | 20 | 3.40 | Download | Download |
| 16-8 | F48312 | 11.20 | 8.00 | 490 | 110 | 260 | 36 | 42 | 20 | 30 | 25 | 6.60 | Download | Download |
| 18-8 | F48313 | 14.00 | 10.00 | 628 | 130 | 290 | 40 | 54 | 23 | 34 | 25 | 8.40 | Download | Download |
| 20-8 | F48322 | 17.00 | 12.50 | 785 | 130 | 300 | 42 | 54 | 25 | 35 | 30 | 10.90 | Download | Download |
| 22-8 | F48315 | 21.20 | 15.00 | 950 | 140 | 330 | 46 | 56 | 28 | 39 | 35 | 15.20 | Download | Download |
| 26-8 | F48319 | 30.00 | 21.20 | 1,300 | 170 | 390 | 54 | 66 | 33 | 46 | 40 | 24.70 | Download | Download |
| 32-8 | F48321 | 45.00 | 31.50 | 1,960 | 210 | 480 | 68 | 80 | 40 | 56 | 50 | 47.40 | Download | Download |
| 32-8 | F48325 | 45.00 | 31.50 | 1,960 | 200 | 700 | 68 | 80 | 38 | 54 | 50 | 63.62 | Download | Download |
