Description

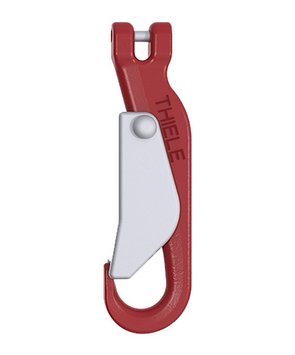

Engine-Transport Clevis Hooks
The grade 80 engine-transport hooks TWN 0889 are used in chain slings as end fittings, predominantly for the transportion of engine blocks. The tip shape enables the attachment to small eyelets.
The manufacturing and testing requirements are based on the DIN EN 1677-1.
| Trade Size | Article-No. | Working Load Limit [t] |
Dimensions
[mm] |
Weight app. [kg] |
CAD
STEP |
CAD
IGES |
|||
| e | g | h | c | ||||||
| 6-8* | F33439 | 0.50 | 137 | 19 | 13 | 12 | 0.55 | Download | Download |
| *Compatible with trade size 6-8, but WLL limited to max 0,5 t. | |||||||||
