Description

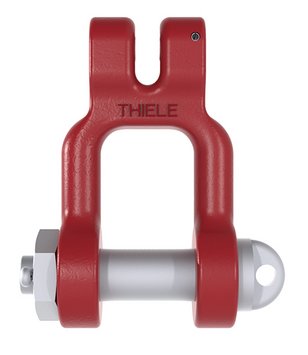

Special Coupling Shackles with Bolt, Nut and Roller Pin
The grade 80 special coupling shackles with bolt, nut and roll pin TWN 0897 are used as end fittings in chain slings. The clevis design enables the direct attachment to the lifting chain. The special coupling shackles can also be mounted directly on straps and traverses.
The manufacturing and testing requirements are based on the DIN EN 1677-1.
| Trade Size | Article-No. | Working Load Limit [t] |
Dimensions
[mm] |
Weight app. [kg] |
CAD
STEP |
CAD
IGES |
|||||
| e | d | c | f | b1 | b2 | ||||||
| 6-8 | F30586 | 1.12 | 70 | 20 | 39 | 46 | 35 | 65 | 0.68 | Download | Download |
| 8-8 | F30596 | 2.00 | 70 | 20 | 40 | 46 | 35 | 65 | 0.77 | Download | Download |
