Description

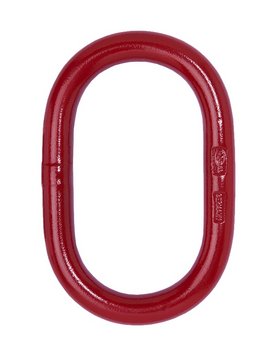

Master Links Type A for 1- and 2-leg Chain Slings
The grade 80 master links TWN 1313 are used to assemble 1- and 2-leg chain slings. The possibility of using the links for single- and double-leg chain slings offers a high flexibility and economical warehousing. The master links can be used e.g. to assemble wire rope slings according to the DIN EN 13414-1.
The dimensions comply with the DIN 5688-3 and enable the use of connecting links, e.g. THI-LOK®s TWN 1320. The manufacturing and testing requirements are based on the DIN EN 1677 parts 1 and 4.
[The master links are also available acc. AS3775 (TWN1301) and acc. ASTM A952 (TWN1303)]
| Article-No. | Working Load Limit 0° < ? ? 45° [t] |
Dimensions
[mm] |
Weight app. [kg] |
Tradesize for use in Chain Slings | Suitable for Crane Hooks acc. DIN 15401 [No.] |
CAD
STEP |
CAD
IGES |
|||
| d | t | b | 1-leg | 2-leg | ||||||
| F1313013 | 2.00 | 13 | 90 | 50 | 0.29 | 6-8 /7-8 | 6-8 | 1,6 | Download | Download |
| F1313016 | 3.15 | 16 | 110 | 60 | 0.53 | 8-8 | 7-8 | 2,5 | Download | Download |
| F1313018 | 4.00 | 18 | 130 | 70 | 0.79 | 10-8 | 8-8 | 4 | Download | Download |
| F1313020 | 4.75 | 20 | 140 | 80 | 1.10 | 10-8 | 5 | Download | Download | |
| F1313022 | 5.60 | 22 | 160 | 90 | 1.50 | 13-8 | 6 | Download | Download | |
| F1313026 | 8.00 | 26 | 180 | 100 | 2.30 | 16-8 | 13-8 | 8 | Download | Download |
| F1313032 | 12.50 | 32 | 230 | 125 | 4.40 | 18-8/20-8 | 16-8 | 12 | Download | Download |
| F1313036 | 16.00 | 36 | 250 | 140 | 6.20 | 22-8 | 18-8 | 16 | Download | Download |
| F1313040 | 19.00 | 40 | 290 | 160 | 8.80 | 20-8 | 20 | Download | Download | |
| F1313045 | 25.00 | 45 | 320 | 175 | 12.00 | 26-8/28-8 | 22-8 | 25 | Download | Download |
| F1313050 | 31.50 | 50 | 340 | 190 | 16.00 | 32-8 | 26-8 | 25 | Download | Download |
| F1313056 | 40.00 | 56 | 380 | 210 | 23.00 | 36-8 | 28-8 | 32 | Download | Download |
| F1313063 | 50.00 | 63 | 430 | 240 | 33.00 | 40-8 | 32-8 | 40 | Download | Download |
| F1313070 | 63.00 | 70 | 470 | 260 | 44.00 | 45-8 | 36-8 | 50 | Download | Download |
| F1313080 | 80.00 | 80 | 520 | 290 | 64.00 | 50-8 | 40-8 | 63 | Download | Download |
| F1313085 | 100.00 | 85 | 520 | 290 | 73.00 | 56-8 | 45-8 | 63 | Download | Download |
| F1313095 | 125.00 | 95 | 580 | 320 | 100.00 | 63-8 | 50-8 | 80 | Download | Download |
| F1313110 | 160.00 | 110 | 680 | 380 | 160.00 | 71-8 | 56-8 | 100 | Download | Download |
