Master Link Assemblies for 3- and 4-leg Wire Rope Slings

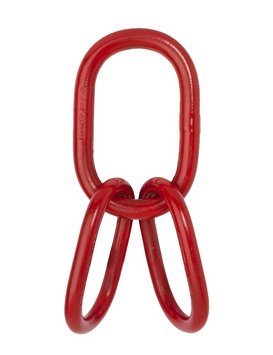

The grade 80 master link assemblies TWN 1315 are used to assemble 3- and 4-leg wire rope slings. The extra large intermediate links enable easy assembly of wire rope slings.
The manufacturing and testing requirements are based on the DIN EN 1677 parts 1 and 4. The dimensions comply with the DIN 5688-3.
| Article-No. | Working Load Limit 0° < ? ? 45° SF = 1:4 [t] |
Dimensions
[mm] |
Weight app. [kg] |
Categorization of the Wire Rope Diameter** | CAD
STEP |
CAD
IGES |
|||||||
| d1 | t1 | b1 | e | d2 | t2 | b2 | Fiber Rope
[mm] |
Steel Rope
[mm] |
|||||
| F1315016 | 2.80 | 16 | 110 | 60 | 200 | 13 | 90 | 50 | 1.11 | 11 | 10 | Download | Download |
| F1315018 | 4.00 | 18 | 130 | 70 | 240 | 16 | 110 | 60 | 1.85 | 13 | 12 | Download | Download |
| F1315022 | 5.30 | 22 | 160 | 90 | 290 | 18 | 130 | 70 | 3.08 | 14 | 14 | Download | Download |
| F1315026 | 7.50 | 26 | 180 | 100 | 340 | 22 | 160 | 90 | 5.40 | 18 | 16 | Download | Download |
| F1315032 | 11.10 | 32 | 230 | 125 | 410 | 26 | 180 | 100 | 9.10 | 22 | 20 | Download | Download |
| F1315036 | 16.00 | 36 | 250 | 140 | 480 | 32 | 230 | 125 | 15.00 | 26 | 24 | Download | Download |
| F1315045 | 21.00 | 45 | 320 | 175 | 570 | 36 | 250 | 140 | 24.40 | 28 | 28 | Download | Download |
| F1315050 | 31.60 | 50 | 340 | 190 | 660 | 45 | 320 | 175 | 40.40 | 36 | 36 | Download | Download |
| *Acc. to the DIN EN 13414-1 for 3- and 4-leg slings. | |||||||||||||
