Description

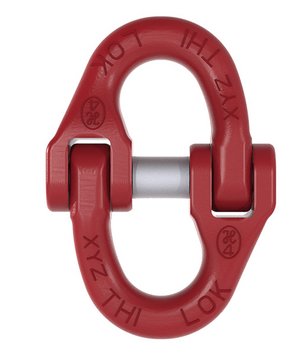

THI-LOK® Connecting Links
The grade 80 THI-LOK® connecting links TWN 1320 are used to connect lifting chains with lifting components to assemble chain slings.
The manufacturing and testing requirements are based on the DIN EN 1677-1.
| Trade Size | Article-No. | Working Load Limit 0° < ? ? 45° [t] |
Dimensions
[mm] |
Weight app. [kg] |
CAD
STEP |
CAD
IGES |
|||||
| e | g | a | c | b | f | ||||||
| 6-8 | F308061 | 1.12 | 39 | 13 | 53 | 38 | 11 | 7.0 | 0.08 | Download | Download |
| 7-8 | F308151 | 1.50 | 47 | 16 | 65 | 48 | 13 | 8.0 | 0.12 | Download | Download |
| 8-8 | F308161 | 2.00 | 54 | 18 | 74 | 53 | 14 | 9.0 | 0.17 | Download | Download |
| 10-8 | F308261 | 3.15 | 64 | 22 | 88 | 62 | 18 | 12 | 0.29 | Download | Download |
| 13-8 | F308361 | 5.30 | 86 | 26 | 118 | 77 | 23 | 15 | 0.62 | Download | Download |
| 16-8 | F308461 | 8.00 | 102 | 36 | 141 | 100 | 29 | 19 | 1.16 | Download | Download |
| 18-8 | F308561 | 10.00 | 115 | 36 | 157 | 111 | 32 | 21 | 1.63 | Download | Download |
| 20-8 | F308661 | 12.50 | 128 | 45 | 175 | 130 | 36 | 23 | 2.30 | Download | Download |
| 22-8 | F308761 | 15.00 | 141 | 45 | 193 | 139 | 39 | 25 | 2.99 | Download | Download |
| 26-8 | F308861 | 21.20 | 166 | 56 | 228 | 165 | 46 | 29 | 4.90 | Download | Download |
| 32-8 | F308961 | 31.50 | 204 | 70 | 282 | 209 | 57 | 38 | 9.65 | Download | Download |
| 36-8 | F309061 | 40.00 | 230 | 80 | 321 | 244 | 66 | 44 | 15.00 | Download | Download |
| 40-8 | F309161 | 50.00 | 230 | 80 | 321 | 244 | 66 | 44 | 15.00 | Download | Download |
