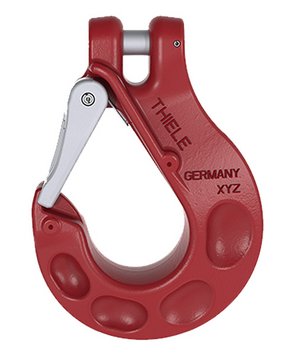

Clevis Sling Hooks with Forged Safety Latch
The grade 80 clevis sling hooks TWN 1340/1 are used to assemble universal chain slings and lashing chains. The clevis design enables the direct attachment to the lifting chain. The forged safety latch prevents an unintentional detachment from the load.
The sling hooks comply with the DIN EN 1677-2.
| Trade Size | Article-No. | Working Load Limit [t] |
Dimensions
[mm] |
Weight app. [kg] |
CAD
STEP |
CAD
IGES |
|||
| e | g | h | c | ||||||
| 6-8 | F336010 | 1.12 | 76 | 20 | 20 | 17 | 0.36 | Download | Download |
| 8-8 | F336110 | 2.00 | 95 | 27 | 25 | 22 | 0.76 | Download | Download |
| 10-8 | F336210 | 3.15 | 114 | 34 | 32 | 28 | 1.41 | Download | Download |
| 13-8 | F336310 | 5.30 | 134 | 41 | 41 | 35 | 2.48 | Download | Download |
| 16-8 | F336410 | 8.00 | 162 | 48 | 50 | 42 | 4.44 | Download | Download |
| 20-8 | F336510 | 12.50 | 201 | 59 | 58 | 51 | 8.57 | Download | Download |
| 20-81) | F33656 | 12.50 | 220 | 65 | 58 | 55 | 9.68 | ||
| 22-8 | F336610 | 15.00 | 224 | 68 | 62 | 55 | 11.46 | Download | Download |
| 1) TWN 0835/1 | |||||||||
