Description
ZK-Modules® with Stressless Lashing®

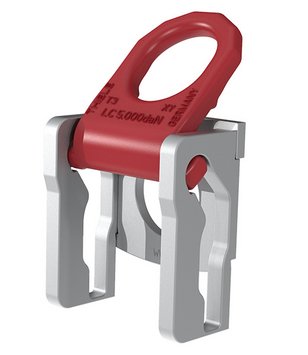

The weld-on ZK-modules® TWN 1471 are predominantly installed in C-shaped side frames of low-loaders and trailers. The large swivel range also allows the securing of overhanging loads. A newly developed, patented cassette design enables a fixed mounting position for easy connection to the lashing equipment.
Stressless Lashing® in perfection.
The manufacturing and testing requirements are based on DIN EN 1677-1.
| Trade Size | Article-No. | Type* | Tensioner under straight load
[daN max.] |
Dimensions
[mm] |
Weight app. [kg] |
CAD
STEP |
CAD
IGES |
|||||||
| d1 | d2 | b | a | t | e | c | f | |||||||
| 5 | F352390 | N | 5,000 | 14 | 14 | 52 | 107 | 12 | 61 | 119 | 60 | 1.92 | Download | Download |
| 5 | F352395 | S | 5,000 | 14 | 14 | 52 | 107 | 12 | 61 | 119 | 60 | 1.95 | Download | Download |
| 10 | F352380 | N | 10,000 | 18 | 18 | 62 | 137 | 15 | 73 | 144 | 78 | 3.45 | Download | Download |
| 10 | F352385 | S | 10,000 | 18 | 18 | 62 | 137 | 15 | 73 | 144 | 78 | 3.46 | Download | Download |
| *The plates of the lashing cassette in the execution „N“ (=Normal) are produced in micro-alloyed steel. The execution „S“ (=Special) are produced from special steel and may be hot dip galvanized (up to 500°C), together with the vehicle frame. | ||||||||||||||
