Description
Lashing Points with two weld-on Brackets

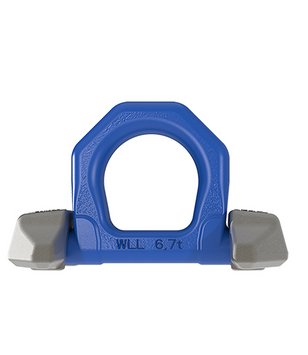

The weld-on lashing points with two weld-on brackets TWN 1473 are used for lashing of loads. The lashing points are predominantly welded to the vehicle frame (semi-trailers, trailers).
The manufacturing and testing requirements are based on DIN EN 1677-1, under consideration of higher lashing forces.
| Trade Size | Article-No. | Article-No.
(Ring only) |
Tensioner under straight load
[daN] |
Dimensions
[mm] |
Weight app. [kg] |
CAD
STEP |
CAD
IGES |
||||||||||||
| d1 | d2 | b | a | l | e | k | h | c | s | f | m | d3 | |||||||
| 10-10 | F352001 | F352002 | 8,000 | 14 | 14 | 48 | 74 | 134 | 69 | 73 | 28 | 65 | 2 | 52 | 105 | 16 | 0.79 | Download | Download |
| 13-10 | F352011 | F352012 | 13,500 | 20 | 20 | 60 | 100 | 170 | 85 | 93 | 37 | 80 | 2 | 61 | 136 | 22 | 1.73 | Download | Download |
| *Upright standing ring. | |||||||||||||||||||
