Lifting points THI-EYE, weld-on type

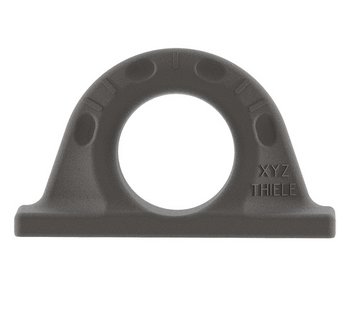

The weld-on type lifting points THI-EYE TWN 1490 are used for lifting, moving, and securing of loads, primarily to get welded onto earth-moving machines, shovels, grabs and traverses.
The lifting points may be used with 100% WLL in all directions, are crack tested and feature angle indicators to optimize alignment during the rigging process.
The manufacturing and testing requirements are based on the DGUV testing principal GS-HM 36 and the DIN EN 1677-1.
| Trade Size | Article-No. | Working Load Limit [t] |
Dimensions
[mm] |
Weight app. [kg] |
|||||
| a | b | t | d | p | h | ||||
| 1,6 | F32305 | 1,6 | 30 | 100 | 16 | 35 | 42 | 58 | 0,40 |
| 3,2 | F32300 | 3,2 | 41 | 137 | 19 | 50 | 60 | 80 | 1,00 |
| 5 | F32301 | 5,0 | 51 | 172 | 26 | 60 | 73 | 99 | 2,10 |
| 10 | F32302 | 10,0 | 70 | 228 | 37 | 80 | 98 | 133 | 5,20 |
| 20* | F32303 | 20,0 | 90 | 272 | 50 | 115 | 140 | 180 | 10,50 |
| 31,5* | F32304 | 31,5 | 108 | 320 | 62 | 130 | 160 | 208 | 18,50 |
| *On request | |||||||||
