TWN 1805
TWN 1805 - Image 2

TWN 1805

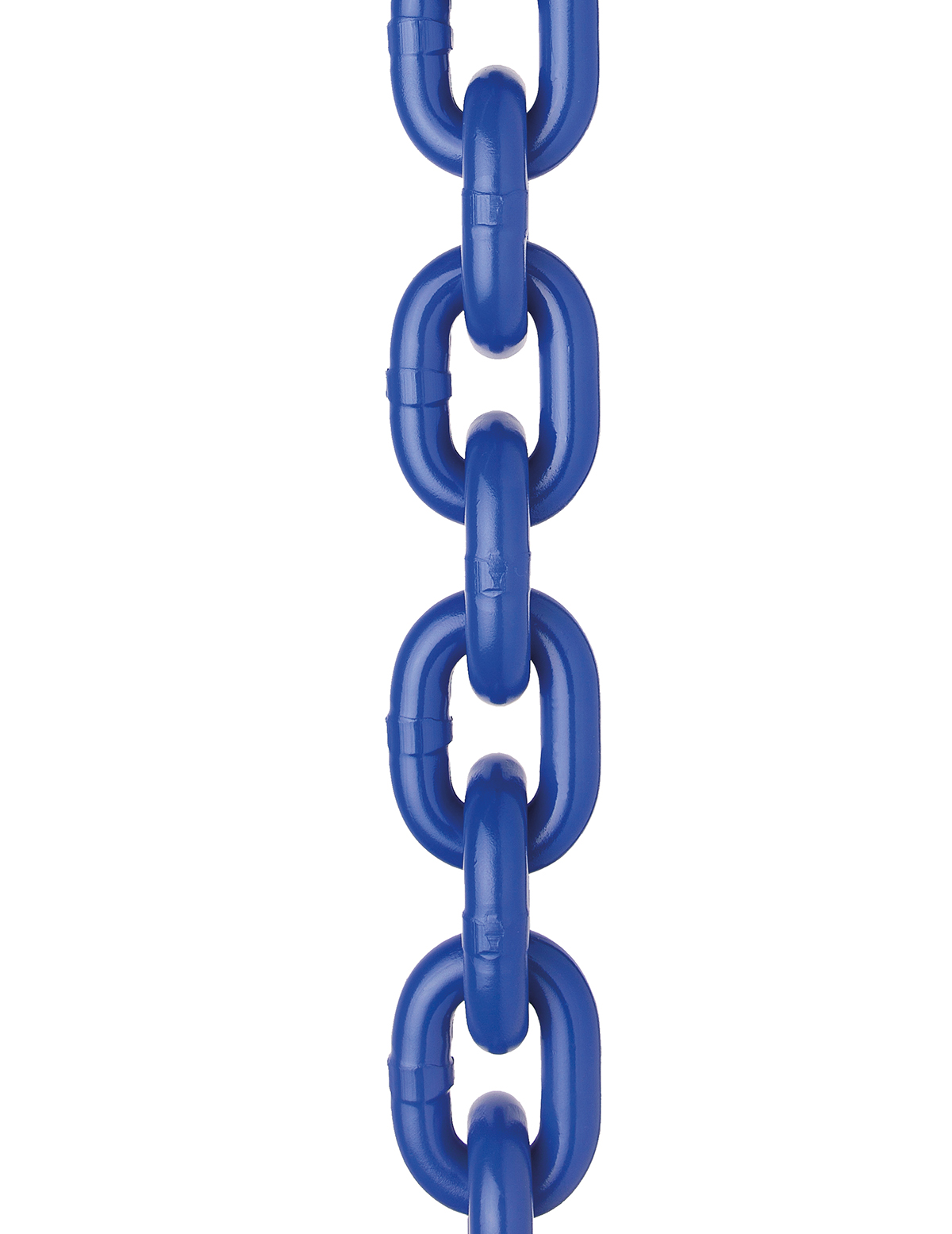

The grade 100 lifting chains XL400 are made from CrNiMo alloy steel and are used to assemble chain slings and lashing chains. The max. application temperature is 380°C. The testing requirements for these high quality round steel chains are based on the DIN EN 818, PAS 1061 and on the German Statutory Accident Insurance test principle GS-HM 37. The lifting chains are especially characterized by their certified fatigue strength.

Categories: , Brand:

Description



Trade Size Article-No. Working
Load Limit[t]		 Nom. Size

dn

[mm]

 Pitch

pn

[mm]

 Inside Width

w3

[mm]

 Outside Width

w2

[mm]

 Weight
app.[kg/m]		 CAD

STEP

 CAD

IGES
6-10 F01610B 1.40 6 18 8.40 22.20 0.89 Download Download
8-10 F01615B 2.50 8 24 11.30 29.60 1.59 Download Download
10-10 F01622B 4.00 10 30 13.40 37.00 2.48 Download Download
13-10 F01629B 6.70 13 39 18.00 48.10 4.18 Download Download
16-10 F01635B 10.00 16 48 21.40 59.20 6.34 Download Download
20-10 F01638B 16.00 20 60 26.80 74.00 9.91 Download Download
22-10 F01650B 19.00 22 66 29.50 81.40 12.00 Download Download
26-10 F01660B 26.50 26 78 34.80 96.20 16.70 Download Download
32-10 F01670B 40.00 32 96 42.80 118.40 26.10 Download Download
