Description

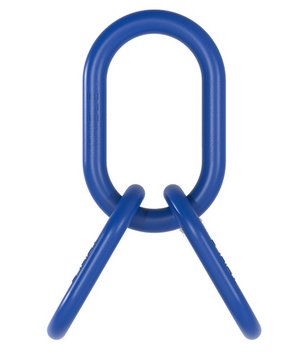

Master Link Assemblies for 3- and 4-leg Wire Rope Slings
The grade 100 master link assemblies TWN 1815 are used to assemble 3- and 4-leg wire rope slings. The extra large intermediate links enable an easy assembly of wire rope slings. The manufacturing and testing requirements are based on the DIN EN 1677 parts 1 and 4, under consideration of grade 100 load capacities. The dimensions comply with the DIN 5688-3.
| Article-No. | Working Load Limit0° < ? ? 45° [t] |
Dimensions
[mm] |
Categorization of the Wire Rope Diameter*
[mm] |
Weight app.[kg] |
CAD
STEP |
CAD
IGES |
|||||||
| d1 | t1 | b1 | e | d2 | t2 | b2 | Fiber Rope | Steel Rope | |||||
| F1815016 | 3.50 | 16 | 110 | 60 | 200 | 13 | 90 | 50 | 12 | 11 | 1.11 | Download | Download |
| F1815018 | 5.00 | 18 | 130 | 70 | 240 | 16 | 110 | 60 | 14 | 14 | 1.85 | Download | Download |
| F1815022 | 6.60 | 22 | 160 | 90 | 290 | 18 | 130 | 70 | 16 | 16 | 3.08 | Download | Download |
| F1815026 | 9.30 | 26 | 150 | 100 | 340 | 22 | 160 | 90 | 20 | 18 | 5.40 | Download | Download |
| F1815032 | 13.90 | 32 | 230 | 125 | 410 | 26 | 180 | 100 | 24 | 22 | 9.10 | Download | Download |
| F1815036 | 20.00 | 36 | 250 | 140 | 480 | 32 | 230 | 125 | 28 | 28 | 15.00 | Download | Download |
| F1815045 | 26.30 | 45 | 320 | 175 | 540 | 36 | 250 | 140 | 32 | 32 | 24.40 | Download | Download |
| F1815050 | 40.00 | 50 | 340 | 190 | 660 | 45 | 320 | 175 | 40 | 40 | 40.40 | Download | Download |
| *According to DIN EN 13414-1 for 3- and 4-leg wire rope slings 1) The classification for use in the 3 / 4 strand takes into account an angle of inclination of 0° < ? ? 45°. |
|||||||||||||
