Description

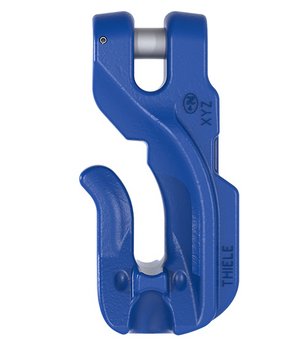

Clevis Shortening Hooks
The grade 100 clevis shortening hooks TWN 1827 are used to adjust the strand lengths of chain slings and lashing chains. The clevis design enables the direct attachment to the chain. The shortening hook has been tested in combination with the lifting chain. The extra wide chain support ensures a particularly firm fit of the inserted chain link. At the same time the link is protected from getting damaged.
The manufacturing and testing requirements comply with the DIN EN 1677-1 and DIN 5692, under consideration of grade 100 load capacities.
| Trade Size | Article-No. | Working Load Limit [t] |
Dimensions
[mm] |
Weight app. [kg] |
CAD
STEP |
CAD
IGES |
|||
| e | g | l | b | ||||||
| 7-10* | F33203 | 2 | 69 | 9 | 103 | 54 | 0.50 | Download | Download |
| 8-10 | F33204 | 3 | 71 | 10 | 110 | 56 | 0.53 | Download | Download |
| 10-10 | F33214 | 4 | 83 | 13 | 132 | 67 | 0.93 | Download | Download |
| 13-10 | F33224 | 7 | 109 | 16 | 168 | 83 | 1.99 | Download | Download |
| 16-10 | F33234 | 10 | 137 | 19 | 208 | 101 | 3.62 | Download | Download |
| 20-10* | F33236 | 16 | 170 | 24 | 260 | 127 | 7.38 | Download | Download |
| 22-10* | F33238 | 19 | 186 | 25.5 | 286 | 139 | 9.95 | Download | Download |
| 26-10* | F33242 | 27 | 220 | 30 | 337 | 164 | 15.26 | Download | Download |
| 32-10* | F33244 | 40 | 271 | 37 | 415 | 202 | 28.18 | Download | Download |
| *On request | |||||||||
