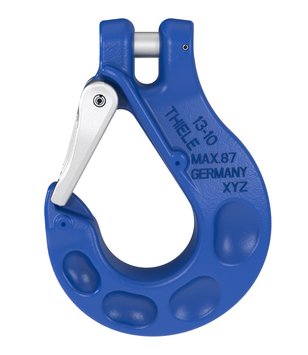

Clevis Sling Hooks with Forged Safety Latch
The grade 100 clevis sling hooks with forged safety latch TWN 1840/1 are used to assemble standard chain slings and lashing chains. The clevis design enables the direct attachment to the lifting chain. Forged-in measuring points of the max. limit values of the hook opening enables easy control. The forged safety latch prevents an unintentional detachment from the load.
The manufacturing and testing requirements comply with the DIN EN 1677-2 under consideration of the grade 100 load capacities.
| Trade Size | Article-No. | Working Load Limit [t] |
Dimensions
[mm] |
Weight app. [kg] |
CAD
STEP |
CAD
IGES |
|||
| e | g | h | c | ||||||
| 6-10 | F336050 | 1.40 | 76 | 20 | 20 | 17 | 0.36 | Download | Download |
| 7-10 | F336070 | 1.90 | 91 | 24 | 22 | 20 | 0.53 | Download | Download |
| 8-10 | F336150 | 2.50 | 94 | 27 | 25 | 22 | 0.76 | Download | Download |
| 10-10 | F336250 | 4.00 | 114 | 34 | 32 | 28 | 1.41 | Download | Download |
| 13-10 | F336350 | 6.70 | 134 | 41 | 41 | 35 | 2.48 | Download | Download |
| 16-10 | F336450 | 10.00 | 162 | 48 | 50 | 42 | 4.40 | Download | Download |
| 20-10 | F336550 | 16.00 | 201 | 59 | 58 | 51 | 8.60 | Download | Download |
| 22-10 | F33664 | 19.00 | 223 | 68 | 62 | 55 | 11.50 | Download | Download |
