Description

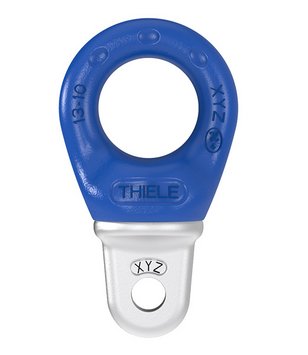

Swivel Adapters
The grade 100 swivel adapters with ball-bearing TWN 1846 supplement components with clevis design and align the individual suspension strands without twisting. The swivel adapter is fixed to the clevis design of the end link, e.g. a sling hook. The large eyelet enables e.g. a connection to chain or rope strands as well as textile slings.
The manufacturing and testing requirements comply with the DIN EN 1677-1, under consideration of grade 100 load capacities.
| Trade Size | Article-No. | Working Load Limit [t] |
Dimensions
[mm] |
Weight app. [kg] |
CAD
STEP |
CAD
IGES |
|||||||
| e | d1 | d2 | d3 | b | c | a | f | ||||||
| 8-10* | F32820 | 2.50 | 94 | 45 | 16 | 16 | 77 | 52 | 117 | 8.5 | 0.74 | Download | Download |
| 10-10 | F32825 | 4.00 | 97 | 45 | 16 | 16 | 77 | 52 | 124 | 11 | 0.79 | Download | Download |
| 13-10 | F32830 | 6.70 | 117 | 50 | 20 | 20 | 90 | 59 | 151 | 14 | 1.43 | Download | Download |
| 16-10* | F32835 | 10.00 | 146 | 65 | 25 | 25 | 115 | 73 | 189 | 17 | 2.72 | Download | Download |
| *On request | |||||||||||||
