Description

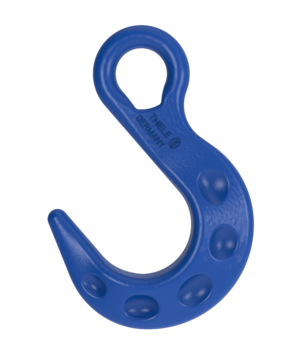

Eye Foundry Hooks
The grade 100 eye foundry hooks with enlarged eye TWN 1856 are used to assemble chain slings predominantly for foundries. The round steel chains are assembled by using connecting links, e.g. XL-LOKs TWN 1820.
The manufacturing and testing requirements comply with the DIN EN 1677-1, under consideration of grade 100 capacities.
| Trade Size | Article-No. | Working Load Limit [t] |
Dimensions
[mm] |
Weight app. [kg] |
CAD
STEP |
CAD
IGES |
||||||||
| b | c | d1 | d2 | d3 | e | f | g | h | ||||||
| 6-10 | F32353 | 1.40 | 93 | 20 | 21 1) | 12 | 12 | 108 | – | 50 | 24 | 0.45 | Download | Download |
| 7/8-10 | F32363 | 2.50 | 127 | 26 | 28 1) | 15 | 14 | 135 | – | 66 | 33 | 0.97 | Download | Download |
| 10-10 | F32373 | 4.00 | 144 | 33 | 32 1) | 17 | 18 | 161 | – | 76 | 35 | 1.56 | Download | Download |
| 13-10 | F32383 | 6.70 | 175 | 38 | 42 1) | 21 | 21 | 196 | – | 89 | 42 | 2.96 | Download | Download |
| 16-10 | F32395 | 10.00 | 204 | 45 | 54 1) | 23 | 23 | 229 | – | 102 | 48 | 4.71 | Download | Download |
| 18/20-10 | F32405 | 16.00 | 236 | 59 | 59 | 27 | 27 | 259 | 70 | 114 | 63 | 7.95 | Download | Download |
| 22-10 | F32413 | 19.00 | 264 | 65 | 65 | 30 | 30 | 288 | 78 | 127 | 70 | 11.00 | Download | Download |
| 26-10 | F32423 | 26.50 | 284 | 75 | 76 | 33 | 35 | 329 | 89 | 136 | 81 | 16.49 | Download | Download |
| 32-10 | F32443 | 40.00 | 333 | 83 | 85 | 42 | 42 | 358 | 100 | 152 | 96 | 26.20 | Download | Download |
| 1) With circular eyelet | ||||||||||||||
