Description

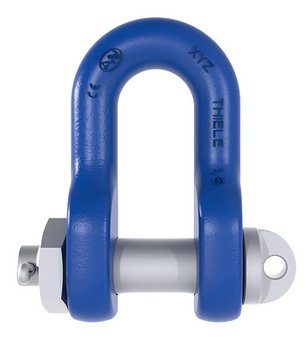

Bolt Shackles Type C with Nut and Roll Pin
The grade 100 shackles type C with bolt, nut and roll pin TWN 1871 are used as end fittings in chain slings. The type C shackles can also be mounted directly on shackles and traverses. The dimensions of the type C shackles comply with the DIN 82101.
The manufacturing and testing requirements are based on the DIN EN 1677-1, under consideration of grade 100 load capacities.
| Trade Size | Article-No. | Working Load Limit [t] |
Dimensions
[mm] |
Weight app. [kg] |
CAD
STEP |
CAD
IGES |
|||||
| d1 | d2 | d4 | b1 | b2 | h1 | ||||||
| 10-10 | F303100 | 4.00 | 15 | 32 | 16 | 21 | 47 | 49 | 0.45 | Download | Download |
| 13-10 | F303200 | 6.70 | 19 | 40 | 20 | 28 | 62 | 61 | 0.84 | Download | Download |
| 16-10 | F303300 | 10.00 | 23 | 48 | 24 | 33 | 75 | 73 | 1.49 | Download | Download |
| 22-10 | F303500 | 19.00 | 33 | 72 | 36 | 47 | 107 | 111 | 4.59 | Download | Download |
