Description

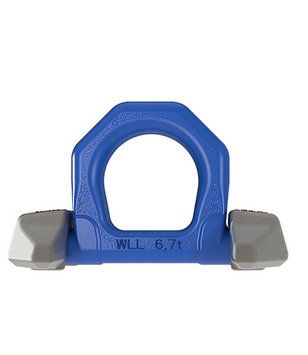

Lifting Points with two Welding Brackets
The weld-on lifting points with two weld-on brackets TWN 1872 are used for lifting and moving of loads. The lifting points are predominantly welded on machine frames, steel constructions, traverses and housings.
The manufacturing and testing requirements are based on the DIN EN 1677-1, under consideration of higher load capacities.
| Trade Size | Article-No. | Working Load Limit [t] |
Dimensions
[mm] |
Weight app. [kg] |
CAD
STEP |
CAD
IGES |
||||||||||||
| d1 | d2 | b | a | l | k | e1) | h | c | s | f | m | d3 | ||||||
| 10-10* | F352005 | 4.00 | 14 | 14 | 48 | 74 | 137 | 74 | 70 | 28 | 65 | 2 | 52 | 105 | 16 | 0.79 | Download | Download |
| 13-10* | F352015 | 6.70 | 20 | 20 | 60 | 100 | 170 | 93 | 85 | 37 | 80 | 2 | 61 | 136 | 22 | 1.73 | Download | Download |
| *On request 1) Upright standing ring. | ||||||||||||||||||
