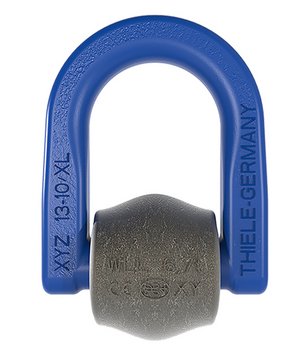

COMPACT Lashing Points with Spring
The weld-on COMPACT lashing points with fixing springs TWN 1880 are used for securing of loads. The lashing points are predominantly welded in recessed skip fittings and on vehicle frames (semi-trailers, trailers). The compact design allows a small installation space.
The manufacturing and testing requirements are based on the DIN EN 1677-1, under consideration of higher lashing forces.
| Trade Size | Article-No. | Tensioner under straight load
[daN] max. |
Dimensions
[mm] |
Weight app. [kg] |
CAD
STEP |
CAD
IGES |
||||||||
| d1 | d2 | b | a | l | e* | h | c | f | ||||||
| 6-10 | F35204 | 3,000 | 13 | 14 | 38 | 65 | 35 | 68 | 26 | 50 | 42 | 0.41 | Download | Download |
| 8-10 | F35205 | 5,000 | 15 | 15 | 45 | 76 | 42 | 73 | 27 | 50 | 46 | 0.57 | Download | Download |
| 10-10 | F35206 | 8,000 | 17 | 17 | 50 | 85 | 46 | 87 | 31 | 55 | 56 | 0.84 | Download | Download |
| 13-10 | F35207 | 13,500 | 23 | 23 | 68 | 116 | 63 | 122 | 44 | 77 | 78 | 2.19 | Download | Download |
| 16-10 | F35208 | 20,000 | 27 | 27 | 69 | 130 | 63 | 126 | 54 | 92 | 72 | 3.35 | Download | Download |
| *Upright standing ring. | ||||||||||||||
