Description

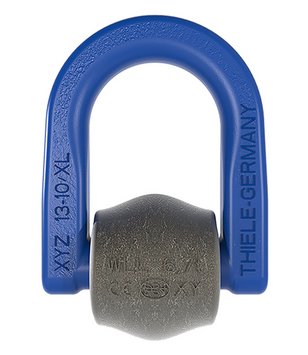

COMPACT Lifting Points with Spring
The weld-on COMPACT lifting points with fixing spring TWN 1882 are used for lifting and moving of loads. The lifting points are predominantly welded on machine frames, steel constructions, trusses and housings. The compact design allows a small installation space.
The manufacturing and testing requirements are based on the DIN EN 1677-1, under consideration of higher load capacities.
| Trade Size | Article-No. | Working Load Limit [t] |
Dimensions
[mm] |
Weight app. [kg] |
CAD
STEP |
CAD
IGES |
||||||||
| d1 | d2 | b | a | l | e* | h | c | f | ||||||
| 6-10 | F352041 | 1.50 | 13 | 14 | 38 | 65 | 35 | 68 | 26 | 50 | 42 | 0.41 | Download | Download |
| 8-10 | F352051 | 2.50 | 15 | 15 | 45 | 76 | 42 | 73 | 27 | 50 | 46 | 0.57 | Download | Download |
| 10-10 | F352061 | 4.00 | 17 | 17 | 50 | 85 | 46 | 87 | 31 | 56 | 56 | 0.84 | Download | Download |
| 13-10 | F352071 | 6.70 | 23 | 23 | 68 | 116 | 63 | 122 | 44 | 78 | 78 | 2.19 | Download | Download |
| 16-10 | F352081 | 10.00 | 27 | 27 | 69 | 130 | 63 | 126 | 54 | 92 | 72 | 3.35 | Download | Download |
| *Upright standing ring. | ||||||||||||||
