Description

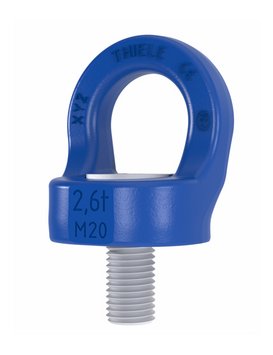

XKE-Points
The screw-on XKE-Points with ball-bearing TWN 1884 are predominantly used in molds- and tool-making. The ball-bearing allows the load to be rotated and turned under load. The eccentrically positioned eye makes it easy to connect lifting equipment. The XKE-points have a multiple times higher load capacity than DIN 580-eye bolts and can be loaded in every direction. The eccentrically arranged eyelet enables an easy assembly with a standard Allen key.
The manufacturing and testing requirements are based on the DIN EN 1677-1.
| Screw Size
dg [mm] |
Article-No. | Working Load Limit [t] |
Thread Length
lg [mm] |

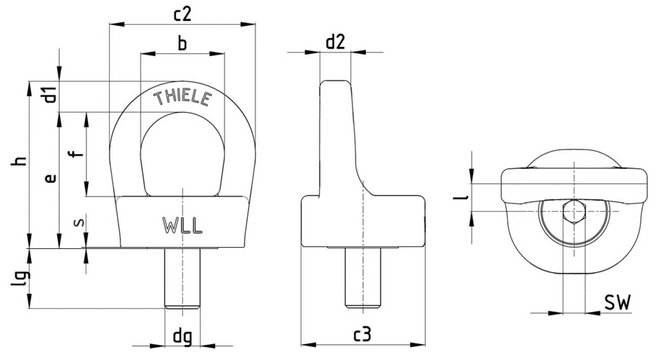

Dimensions
[mm] |
Weight app. [kg] |
CAD
STEP |
CAD
IGES |
||||||||||
| b | c2 | c3 | e | f | h | d1 | d2 | l | s | SW | |||||||
| M8 | F38005 | 0.30 | 16 | 26 | 45 | 37 | 40 | 26 | 50 | 9.5 | 9.5 | 8 | 0,5 | 5 | 0.18 | Download | Download |
| M10 | F38006 | 0.50 | 16 | 26 | 45 | 37 | 40 | 26 | 50 | 9.5 | 9.5 | 8 | 0,5 | 6 | 0.18 | Download | Download |
| M12 | F38007 | 1.00 | 18 | 30 | 51 | 43 | 47 | 30 | 57 | 10.5 | 10.5 | 10 | 0,5 | 8 | 0.29 | Download | Download |
| M16 | F38010 | 1.70 | 27 | 38 | 66 | 56 | 62 | 38 | 76 | 14 | 14 | 13 | 0,5 | 10 | 0.66 | Download | Download |
| M20 | F38020 | 2.60 | 33 | 42 | 74 | 61 | 70 | 42 | 86 | 16 | 16 | 15 | 0,6 | 12 | 0.99 | Download | Download |
| M24 | F38030 | 3.50 | 39 | 51 | 85 | 65 | 82 | 51 | 99 | 17 | 18 | 16 | 0,6 | 14 | 1.34 | Download | Download |
| M30 | F38040 | 6.00 | 45 | 62 | 104 | 82 | 97 | 62 | 118 | 21 | 22 | 20 | 1,0 | 19 | 2.29 | Download | Download |
| M36 | F38050 | 8.00 | 55 | 75 | 131 | 92 | 116 | 75 | 144 | 28 | 28 | 25 | 1,0 | 19 | 4.17 | Download | Download |
| M42 | F38060 | 11.50 | 64 | 95 | 173 | 122 | 142 | 95 | 181 | 39 | 39 | 33 | 1,2 | 22 | 8.89 | Download | Download |
| M45 | F38070 | 13.00 | 74 | 95 | 173 | 122 | 142 | 95 | 181 | 39 | 39 | 33 | 1,2 | 24 | 9.09 | Download | Download |
| M48 | F38080 | 14.50 | 74 | 95 | 173 | 122 | 142 | 95 | 181 | 39 | 39 | 33 | 1,2 | 27 | 9.18 | Download | Download |
