Description
XS-Points

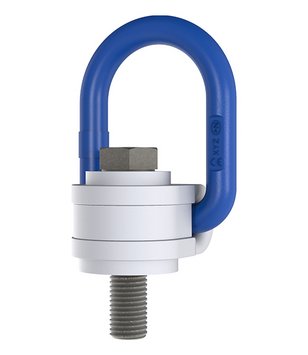

The screw-type XS-Points TWN 1890 are predominantly used in mold making, tool making and vehicle construction. The extra large D-links enable an easy assembling to other lifting components. The bracket can be easily aligned in direction of force. The shape of the XS-Points allows the use of variable screw lengths.
The manufacturing and testing requirements are based on the DIN EN 1677-1.
| Screw Size
dg [mm] |
Article-No. | Working Load Limit [t] |
Thread Length
lg [mm] |
Dimensions
[mm] |
Weight app. [kg] |
CAD
STEP |
CAD
IGES |
|||||||||
| e | f | c | l | t | b | h | d | SW | a | |||||||
| M8 | F352398 | 0.30 | 17 | 71 | 38 | 43 | 17 | 53 | 35 | 35 | 8.5 | 13 | 32 | 0.29 | ||
| M10 | F35243 | 0.63 | 17 | 71 | 37 | 43 | 17 | 53 | 35 | 35 | 8.5 | 16 | 32 | 0.29 | Download | Download |
| M12 | F35244 | 1.00 | 22 | 71 | 36 | 43 | 17 | 53 | 35 | 36 | 8.5 | 18 | 32 | 0.31 | Download | Download |
| M16 | F35245 | 1.70 | 28 | 98 | 46 | 64 | 25 | 70 | 50 | 52 | 13 | 24 | 48 | 0.95 | Download | Download |
| M20 | F35246 | 2.50 | 38 | 98 | 44 | 64 | 26 | 70 | 50 | 54 | 13 | 30 | 48 | 1.05 | Download | Download |
| M24 | F35247 | 4.00 | 40 | 135 | 70 | 71 | 28 | 102 | 58 | 65 | 16 | 36 | 50 | 1.69 | Download | Download |
| M30 | F35249 | 6.00 | 44 | 149 | 73 | 88 | 35 | 110 | 70 | 75 | 20 | 46 | 65 | 3.07 | Download | Download |
| M36 | F35250 | 8.00 | 64 | 149 | 70 | 88 | 35 | 110 | 70 | 79 | 20 | 55 | 67 | 3.55 | Download | Download |
| M42 | F35251 | 10.00 | 74 | 191 | 98 | 106 | 43 | 145 | 84 | 93 | 24 | 65 | 81 | 6.10 | Download | Download |
