Description

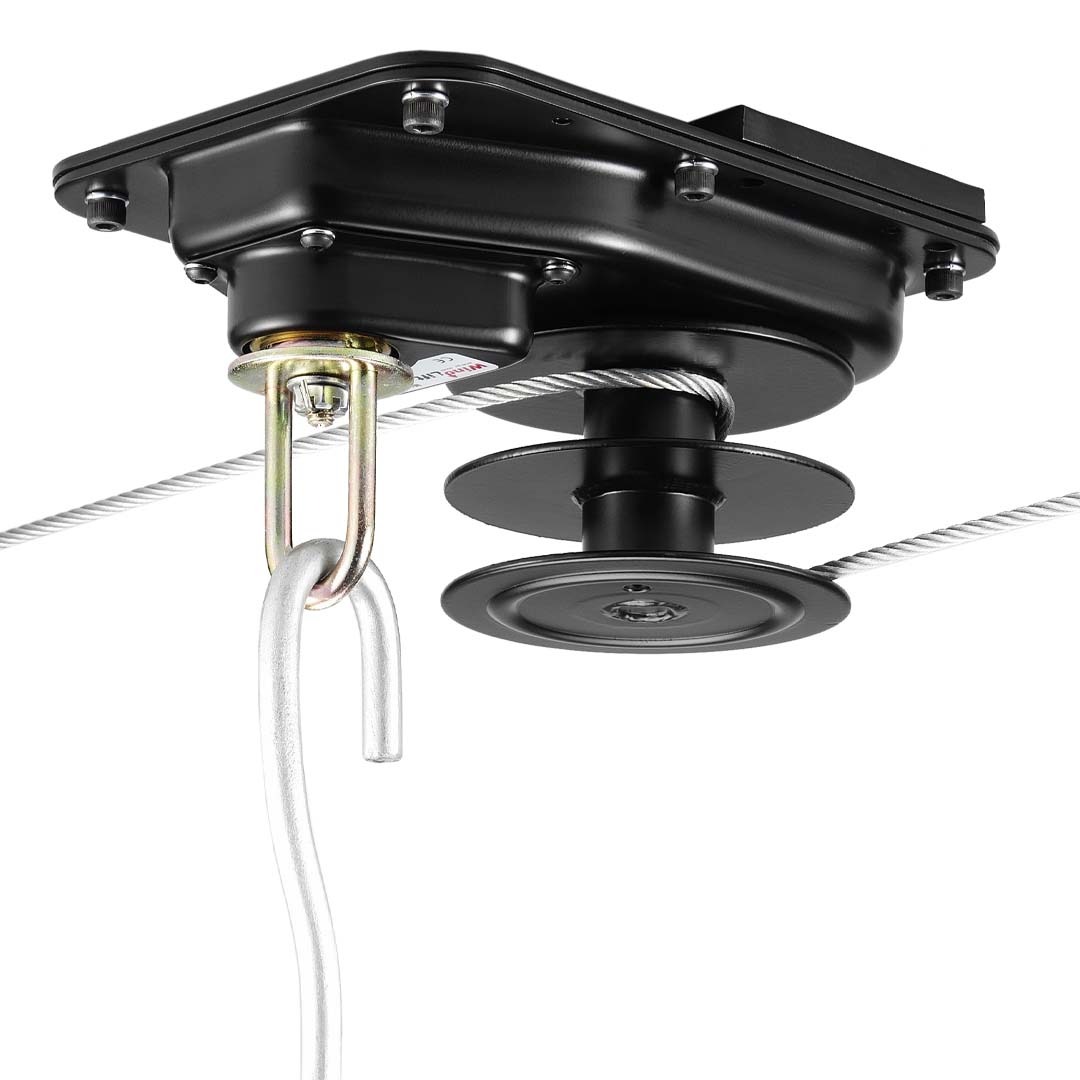

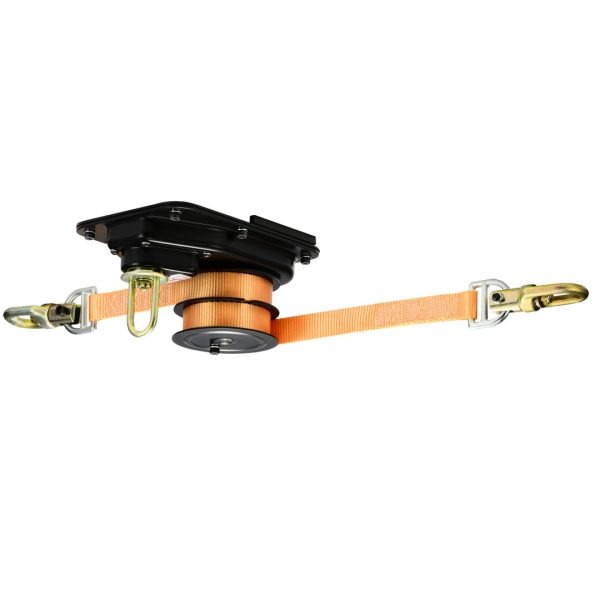

SF-5000 (wire)/SF-5000-S (strap)
Product no: SF-5000
- 5000lb/2270kg capacity
- Positive load-actuated brake can hold the load in any position
- Split reel, which allows for operation of two cables
- Gears and brake are fully covered to prevent dust, dirt and rain contamination
- Loop drive allows the winch to be mounted out of reach and operated with an extension pole fitted to engage the loop
- Various loop sizes available
- Very low operator effort is required for easy operation
- 5000lb/2270kg capacity
- Positive load-actuated brake can hold the load in any position
- Split reel, which allows for operation of two cables
- Gears and brake are fully covered to prevent dust, dirt and rain contamination
- Loop drive allows the winch to be mounted out of reach and operated with an extension pole fitted to engage the loop
- Various loop sizes available
- Very low operator effort is required for easy operation
Certification
Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC.
Temperature Range
Operating temperature -40°C to +80°C (temperature range of -60°C to +80°C available as an option)
Due to our policy of continual product development, dimensions, weights and specifications may change without prior notice. Please check with your Tiger sales team when ordering.
| Product Code | Rated Capacity (lbs/kg) | Hand Force (kg) | Gear Ratio | Hub Diameter (mm) | Handle Length (mm) | Unit Weight (with handle) (kg) | Unit Weight (with loop) (kg) | Cable Diameter (mm/inch) | Cable Storage Cap. (m) |
Technical Drawing |
|---|---|---|---|---|---|---|---|---|---|---|
| SF-5000 | 5000/2270 | 4 | 90.24:1 | ?65 | – | – | 9.3 | ?6.4/?1/4 | 11*2 |  |
| SF-5000-S | 5000/2270 | 4 | 90.24:1 | ?45 | – | – | 9.3 | – | 4.5*2 | |
