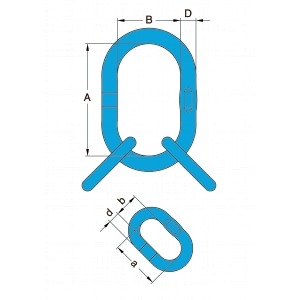

Welding Oblong Master Links
Design factor 4:1 proof tested and certified.
Specification
| 3d file Download | ITEM NO. | Assembled with | For Grade 100 Chain (mm) |
WLL ? 0-45° |
Proof Load |
Used to single hook Acc. to DIN 15401NO. | Dimensions (mm) | N.W | ||||||
| 3 and 4-leg | tonnes | kN | D | A | B | d | a | b | kg | |||||
 |
X-006-19 | BD-19 | +2DD-13 |
6 |
4.2 | 103 |
5 |
19 | 135 | 75 | 13 | 54 | 25 | 1.3 |
| |
X-006-22 | BD-22 | +2DD-16 |
7,8 |
8.2 | 201 |
6 |
22 | 160 | 90 | 16 | 70 | 34 | 2.2 |
| |
X-006-28 | BD-28 | +2DD-19 |
10 |
10.7 | 262 |
8 |
28 | 180 | 100 | 19 | 85 | 40 | 3.9 |
| |
X-006-32 | BD-32 | +2DD-22 |
13 |
15.7 | 385 |
10 |
32 | 200 | 110 | 22 | 115 | 50 | 6.1 |
| |
X-006-36 | BD-36 | +2DD-28 |
16 |
22.2 | 544 |
16 |
36 | 260 | 140 | 28 | 140 | 65 | 10.6 |
| |
X-006-50 | BD-50 | +2DD-32 |
20 |
34.1 | 835 |
32 |
50 | 300 | 200 | 32 | 150 | 70 | 21.2 |
| |
X-006-501 | BD-50 | +2DD-36 |
22 |
40 | 980 |
32 |
50 | 300 | 200 | 36 | 170 | 75 | 23.8 |
|
|
|
|||||||||||||
|
|
|
|||||||||||||
Design factor 4:1 proof tested and certified.
