X-015 Wire Sling/Chain Sling Fittings / G-100 Connecting Link. Grade100 Lifting Chain Fittings
X-015 Wire Sling/Chain Sling Fittings / G-100 Connecting Link. Grade100 Lifting Chain Fittings - Image 2
X-015 Wire Sling/Chain Sling Fittings / G-100 Connecting Link. Grade100 Lifting Chain Fittings - Image 3

X-015 Wire Sling/Chain Sling Fittings / G-100 Connecting Link. Grade100 Lifting Chain Fittings

Description
? Design factor 4:1 proof tested and certified.
Category: Brand:

Description

Description
? Design factor 4:1 proof tested and certified.
Specification

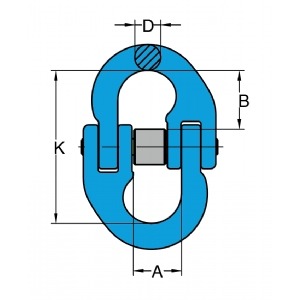

 3D file Download Item No. Working Load Limit For Grade 100 Chain (mm) Dimensions (mm) N.W.
tonnes* mm A B D K Kg
  X-015-06 1.4 6 15 17 7 45 0.08
  X-015-07 2.5 7, 8 18 23 9 59 0.2
  X-015-10 4.0 10 25 27 11 69 0.3
  X-015-13 6.7 13 30 37 16 92 0.7
  X-015-16 10.0 16 36 39 19 101 1.2
  X-015-20 16.0 20 42 46 23 122 2.1
  X-015-22 19.0 22 49 59 24 152 3.5
  X-015-26 26.5 26 55 62 30 162 4.8
  X-015-32 40.0 32 69 79 36 203 9.0
