Description
Description
? Design factor 4:1 proof tested and certified.
Specification

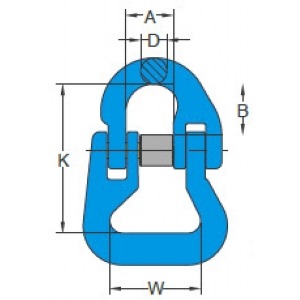

| 3D file Download | Item No. | Working Load Limit | For Grade 100 Chain (mm) | Dimensions (mm) | N.W. | ||||
| tonnes* | mm | A | B | D | K | W | Kg | ||
 |
X-016-06 | 1.4 | 6 | 15 | 17 | 7 | 56 | 39 | 0.2 |
| |
X-016-07 | 2.5 | 7, 8 | 18 | 23 | 9 | 63 | 39 | 0.3 |
| |
X-016-10 | 4.0 | 10 | 25 | 27 | 11 | 77 | 46 | 0.6 |
| |
X-016-13 | 6.7 | 13 | 30 | 37 | 16 | 97 | 53 | 1.1 |
| |
X-016-16 | 10.0 | 16 | 36 | 39 | 19 | 114 | 66 | 2.0 |
| |
X-016-20 | 16.0 | 20 | 42 | 46 | 23 | 132 | 79 | 3.2 |
| |
X-016-22 | 19.0 | 22 | 49 | 59 | 24 | 188 | 124 | 7.7 |
