X-025 Wire Sling/Chain Sling Fittings / G-100 Eye Self Locking Hook. Grade100 Lifting Chain Fittings
X-025 Wire Sling/Chain Sling Fittings / G-100 Eye Self Locking Hook. Grade100 Lifting Chain Fittings - Image 2

X-025 Wire Sling/Chain Sling Fittings / G-100 Eye Self Locking Hook. Grade100 Lifting Chain Fittings

Description
? Design factor 4:1 proof tested and certified.
Category: Brand:

Description

Description
? Design factor 4:1 proof tested and certified.
Specification

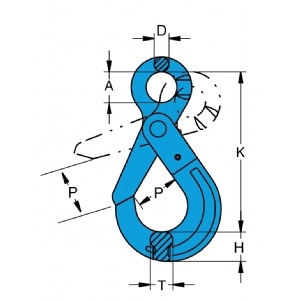

  3D file Download Item No. Working Load Limit For Grade 100 Chain (mm) Dimensions (mm) N.W.
tonnes* mm A D H K P T Kg
  X-025-06 1.4 6 21 10 19 110 28 15 0.5
  X-025-07 2.5 7, 8 25 11 24 136 34 20 0.8
  X-025-10 4.0 10 32 13 30 167 44 26 1.5
  X-025-13 6.7 13 40 16 39 207 51 30 3.0
  X-025-16 10.0 16 50 21 49 252 60 36 5.8
  X-025-20 16.0 20 60 23 65 293 70 53 10.0
  X-025-22 19.0 22 70 24 63 319 80 49 12.5
  X-025-26 26.5 26 80 25 69 343 99 56 15.0
