Description
Description
? Design factor 4:1 proof tested and certified.
Specification

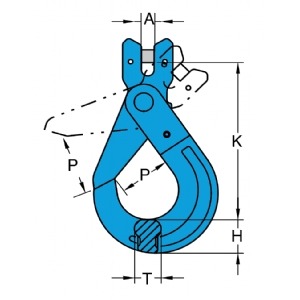

| 3D file Download | Item No. | Working Load Limit | For Grade 100 Chain (mm) | Dimensions (mm) | N.W. | ||||
| tonnes* | mm | A | H | K | P | T | Kg | ||
 |
X-026-06 | 1.4 | 6 | 7 | 19 | 94 | 28 | 15 | 0.4 |
| |
X-026-07 | 2.5 | 7, 8 | 9 | 24 | 119 | 34 | 20 | 0.9 |
| |
X-026-10 | 4.0 | 10 | 11 | 30 | 142 | 44 | 26 | 1.4 |
| |
X-026-13 | 6.7 | 13 | 15 | 39 | 178 | 52 | 30 | 3.0 |
| |
X-026-16 | 10.0 | 16 | 18 | 49 | 213 | 60 | 36 | 5.0 |
| |
X-026-20 | 16.0 | 20 | 25 | 65 | 251 | 70 | 53 | 11.0 |
| |
X-026-22 | 19.0 | 22 | 24 | 63 | 273 | 80 | 49 | 13.5 |
