X-027 Wire Sling/Chain Sling Fittings / G-100 Swivel Self Locking Hook Grade100 Lifting Chain Fittings

Description
? Design factor 4:1 proof tested and certified. WARNING INFORMATION: This hook is a positioning device and is not intended to rotate under load. For swivel hooks designed to rotate under load, please refer to X-027N.
Category: Brand:

Description

Description
? Design factor 4:1 proof tested and certified. WARNING INFORMATION: This hook is a positioning device and is not intended to rotate under load. For swivel hooks designed to rotate under load, please refer to X-027N.
Specification

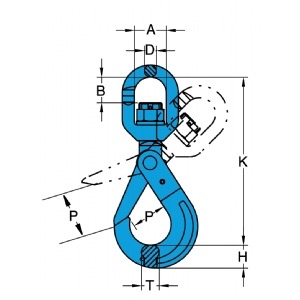

  3D file Download Item No. For Grage 100 Chain WLL Dimensions (mm) N.W.
mm tonnes* A B D H K P T Kg
  X-027-06 6 1.4 32 25 12 19 149 28 15 0.7
  X-027-07 7,8 2.5 36 30 13 24 186 34 20 1.2
  X-027-10 10 4.0 41 38 16 30 218 44 26 2.0
  X-027-13 13 6.7 46 48 21 39 276 51 30 4.1
  X-027-16 16 10 61 56 23 49 329 60 36 7.2
  X-027-20 20 16 74 86 25 65 403 70 53 13.0
  X-027-22 22 19 97 98 33 63 454 80 49 20.0
  X-027-26 26 26.5 123 120 51 69 535 99 56 33.0
