Description
Description
Not for use with Omega Link. No reduction of working load limit, thanks to supporting wings which prevent chain link deformation. ? Design factor 4:1 proof tested and certified.
Specification

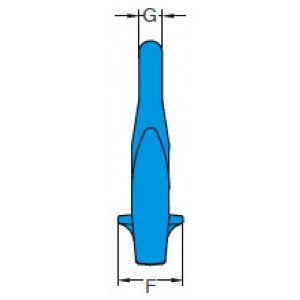

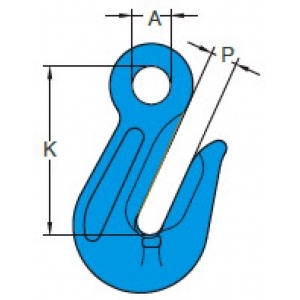

| 3D file Download | Item No. | Working Load Limit | For Grade 100 Chain (mm) | Dimensions (mm) | N.W. | ||||
| tonnes* | mm | A | B F | G | K | P | Kg | ||
 |
X-041-06 |
1.4 |
6 |
13 |
7 26 |
8 |
50 |
8 |
0.2 |
| |
X-041-07 |
2.5 |
7, 8 |
16 |
10 30 |
9 |
62 |
10 |
0.3 |
| |
X-041-10 |
4.0 |
10 |
20 |
13 40 |
13 |
82 |
13 |
0.6 |
| |
X-041-13 |
6.7 |
13 |
26 |
16 52 |
16 |
107 |
17 |
1.4 |
| |
X-041-16 |
10.0 |
16 |
30 |
18 70 |
20 |
132 |
21 |
2.4 |
| |
X-041-20 |
16.0 |
20 |
40 |
22 73 |
24 |
148 |
24 |
4.0 |
| |
X-041-22 |
19.0 |
22 |
42 |
24 86 |
26 |
166 |
26 |
5.0 |
| |
X-041-26 X-041-32 |
26.5 40.0 |
26 32 |
50 62 |
30 110 37 130 |
32 42 |
207 266 |
33 42 |
10.0 24.0 |
