X-044/S Wire Sling/Chain Sling Fittings / G-100 Eye Sling Hook Grade100 Lifting Chain Fittings
X-044/S Wire Sling/Chain Sling Fittings / G-100 Eye Sling Hook Grade100 Lifting Chain Fittings - Image 2

X-044/S Wire Sling/Chain Sling Fittings / G-100 Eye Sling Hook Grade100 Lifting Chain Fittings

Description
? Design factor 4:1 proof tested and certified.
Category: Brand:

Description

Description
? Design factor 4:1 proof tested and certified.
Specification

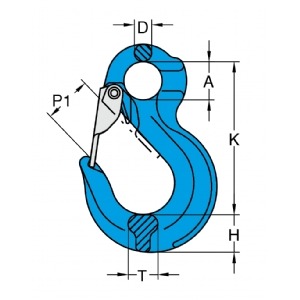

Item No. For Grade 100 Chain Working Load Limit Dimensions (mm) N.W.
 3D file Download mm tonnes* A D H K P1 T Kg
  X-044/S-06 6 1.4 20 10 19 80 23 17 0.3
  X-044/S-07 7,8 2.5 25 12 22 98 28 20 0.5
  X-044/S-10 10 4.0 33 15 30 122 36 23 1.0
  X-044/S-13 13 6.7 40 18 38 152 40 28 1.8
  X-044/S-16 16 10.0 51 22 44 185 44 36 3.4
  X-044/S-20 20 16.0 61 27 64 230 54 48 7.3
  X-044/S-22 22 19.0 51 31 61 245 76 52 9.3
  X-044/S-26 26 26.5 65 34 77 285 77 61 13.5
  X-044/S-32 32 40.0 91 41 79 358 114 65 22.0
