Description
- Quenched and Tempered Alloy Steel.
- At least 25% greater WLL than traditional G80 products.
- Manufactured in accordance with EN 1677- 1 and ASME B30.26.
- Proof Load tested at 2.5 times the WLL with certification for each batch manufactured.
- Design Factor 4:1.
- Fatigue rated to 20,000 cycles at 1.5 times the WLL.
- Tempering temperature minimum 400°C
- The use of Clevis Clutch still allows 100% of the chain sling capacity.
- With the locking system and spring locking pin design to enhance security and prevent the chains from disengaging.
Specification

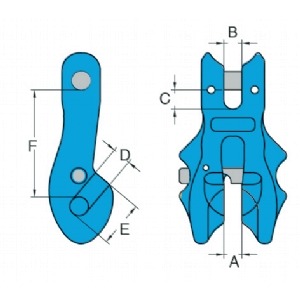

| Item No. | Working Load Limit | For Grade 100 Chain (mm) | Dimensions (mm) | N.W. | |||||
| tonnes* | mm | A | B | C | D | E | F | Kg | |
| X-061-07 | 2.5 | 7,8 | 10 | 10 | 10 | 10 | 24 | 58 | 0.5 |
| X-061-10 | 4.0 | 10 | 12 | 12 | 12 | 12 | 34 | 71 | 1.0 |
| X-061-13 | 6.7 | 13 | 15 | 15 | 16 | 15 | 40 | 92 | 2.2 |
| X-061-16 | 10.0 | 16 | 21 | 18 | 18 | 19 | 48 | 103 | 3.9 |
? Design factor 4:1 proof tested and certified.
