Description
Description
? Design factor 4:1 proof tested and certified
Specification

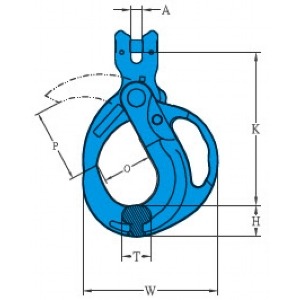

| 3D file Download | Item No. | Working Load Limit | For Grade 100 Chain (mm) | Dimensions (mm) | N.W. | ||||||
| tonnes* | mm | A | H | K | O | P | T | W | Kg | ||
 |
X-951-10 | 4.0 | 10 | 12.1 | 31 | 153 | 49 | 71 | 27 | 137 | 1.9 |
| |
X-951-13 | 6.7 | 13 | 15.5 | 39 | 203 | 64 | 80 | 34 | 174 | 4.1 |
| |
X-951-16 | 10.0 | 16 | 19.1 | 47 | 244 | 78 | 114 | 39 | 212 | 7.1 |
| |
X-951-20 | 16.0 | 20 | 24 | 55 | 312 | 92 | 127 | 54 | 251 | 12.7 |
| |
X-951-22 | 19.0 | 22 | 24.2 | 59 | 304 | 98 | 151 | 56 | 258 | 14.1 |
