Description
Description
? Design factor 4:1 proof tested and certified
Remark
American Patent
Specification

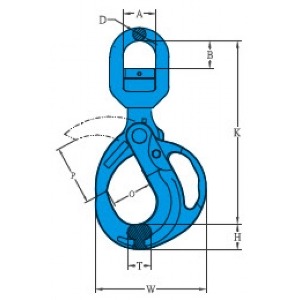

| 3D file Download | Item No. | Working Load Limit | For Grade 100 Chain (mm) | Dimensions (mm) | N.W. | ||||||||
| tonnes* | mm | A | B | D | H | K | O | P | T | W | Kg | ||
 |
X-952N-10 | 4.0 | 10 | 41 | 35 | 16 | 31 | 226 | 49 | 71 | 27 | 137 | 2.4 |
| |
X-952N-13 | 6.7 | 13 | 46 | 44 | 21 | 39 | 283 | 64 | 80 | 34 | 174 | 5.2 |
| |
X-952N-16 | 10.0 | 16 | 61 | 50 | 23 | 47 | 347 | 78 | 114 | 39 | 212 | 8.4 |
| |
X-952N-20 | 16.0 | 20 | 74 | 82 | 25 | 55 | 433 | 92 | 127 | 54 | 251 | 14.5 |
| |
X-952N-22 | 19.0 | 22 | 97 | 96 | 33 | 59 | 476 | 98 | 151 | 56 | 258 | 20.4 |
