G100 2 Leg Assembly
Specification
| Item NO. | For Grade 100 Chain |

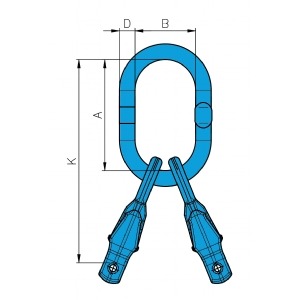

Can be used on single hook Acc. to DIN15401 No. | Dimensions (mm) | N.W. | ||||
|
WLL |
||||||||
| tonnes | (mm) | D | A | B | K | kg | ||
| X-A05-06 | 2 | 6 | 4 | 13 | 120 | 70 | 196 | 0.9 |
| X-A05-08 | 3.5 | 7,8 | 6 | 19 | 160 | 95 | 262 | 2.2 |
| X-A05-10 | 5.6 | 10 | 10 | 22 | 170 | 105 | 295 | 3.8 |
| X-A05-13 | 9.4 | 13 | 10 | 28 | 190 | 110 | 348 | 7.0 |
| X-A05-16 | 14 | 16 | 12 | 32 | 230 | 130 | 432 | 13.6 |
