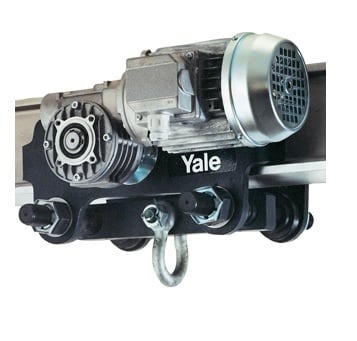

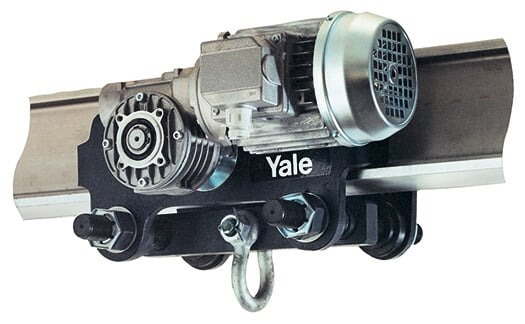

Yale VTE-U Electric Trolley
Yale VTE-U Electric Trolley - Image 2

Yale VTE-U Electric Trolley

Category: Brand:

Description

Specially recommended for loads over 1000 kg, for transporting over long distances and/or when used frequently. Suitable for almost all hoists with suspension hook due to universal shackle connection. Travel motor with worm gear transmission ensures smooth start and self braking – a separate motor brake is not required.

Documents

Datasheets
Browse All Documents

Features & Benefits

  • Capacity
    1000 – 5000 kg
  • Standard Operating Voltage
    400 V, 3 Ph, 50 Hz.
  • IP Rating
    Motor protected to IP 55 against dust and water jets.
  • Controller
    Push-button pendant control IP 65.
  • Maximizes Vertical Space
    Compact, robust frame with low overall height.
  • Fracture Proof Steel Wheels
    Smooth running due to machined surfaces and ball bearing mounting. Cambered profile suitable for flat and inclined beam profiles.
  • Secure Handling
    Anti-drop and anti-tilt devices as standard.
  • Adaptable
    Easy adjusted to fit to a wide range of beam widths and profiles due to threaded spindles.

Optional Features

  • Low Voltage Control 42V
  • Rubber Buffers

Documents

Manuals & Supplements

[O&M Manual] VTE/F-U Electric Trolley Operating Manual – EN[O&M Manual] VTE Electric Trolley Operations Manual – EN

Product & Data Sheets

[Datasheets] Yale VTE-U and VTEF-U – Datasheet English
