Description

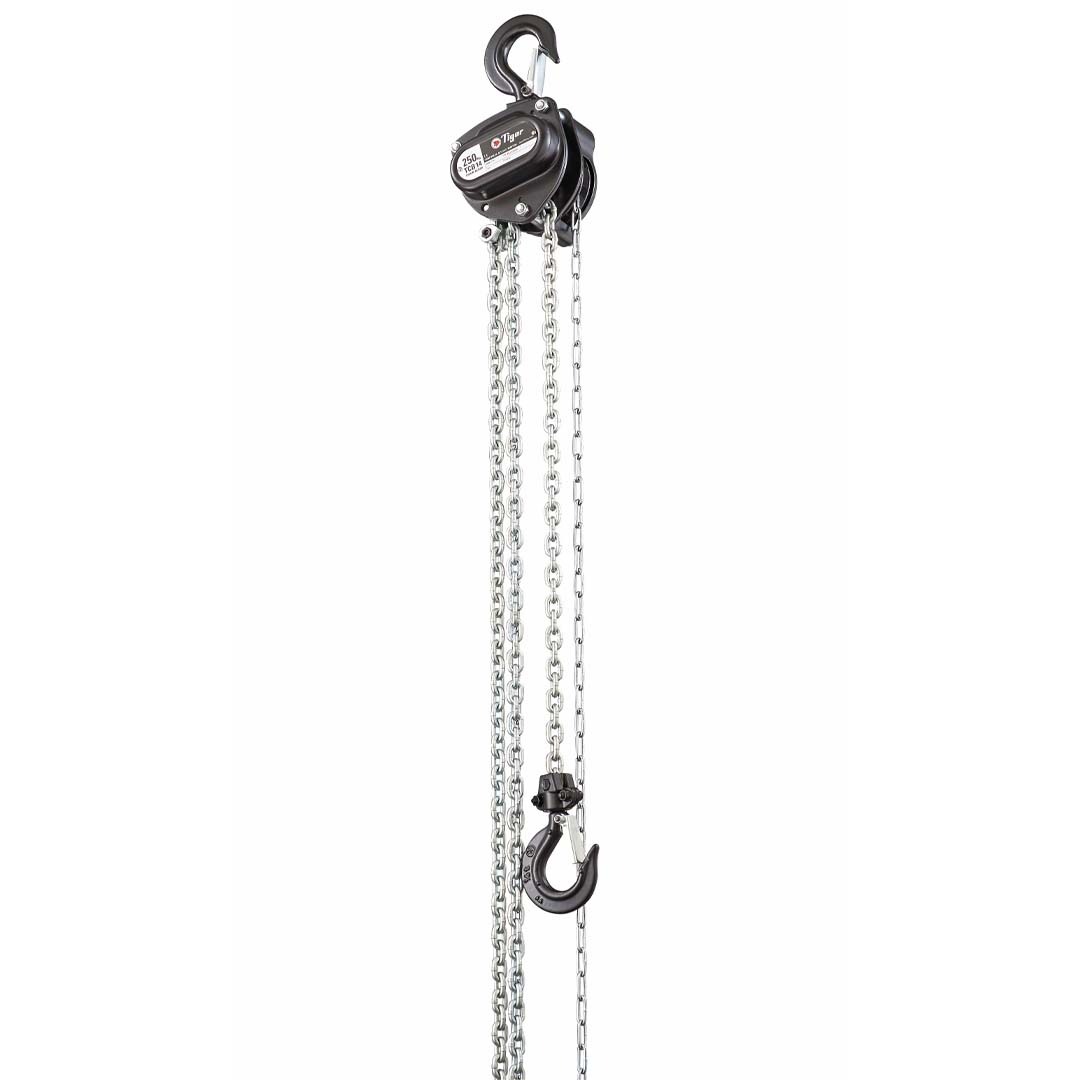

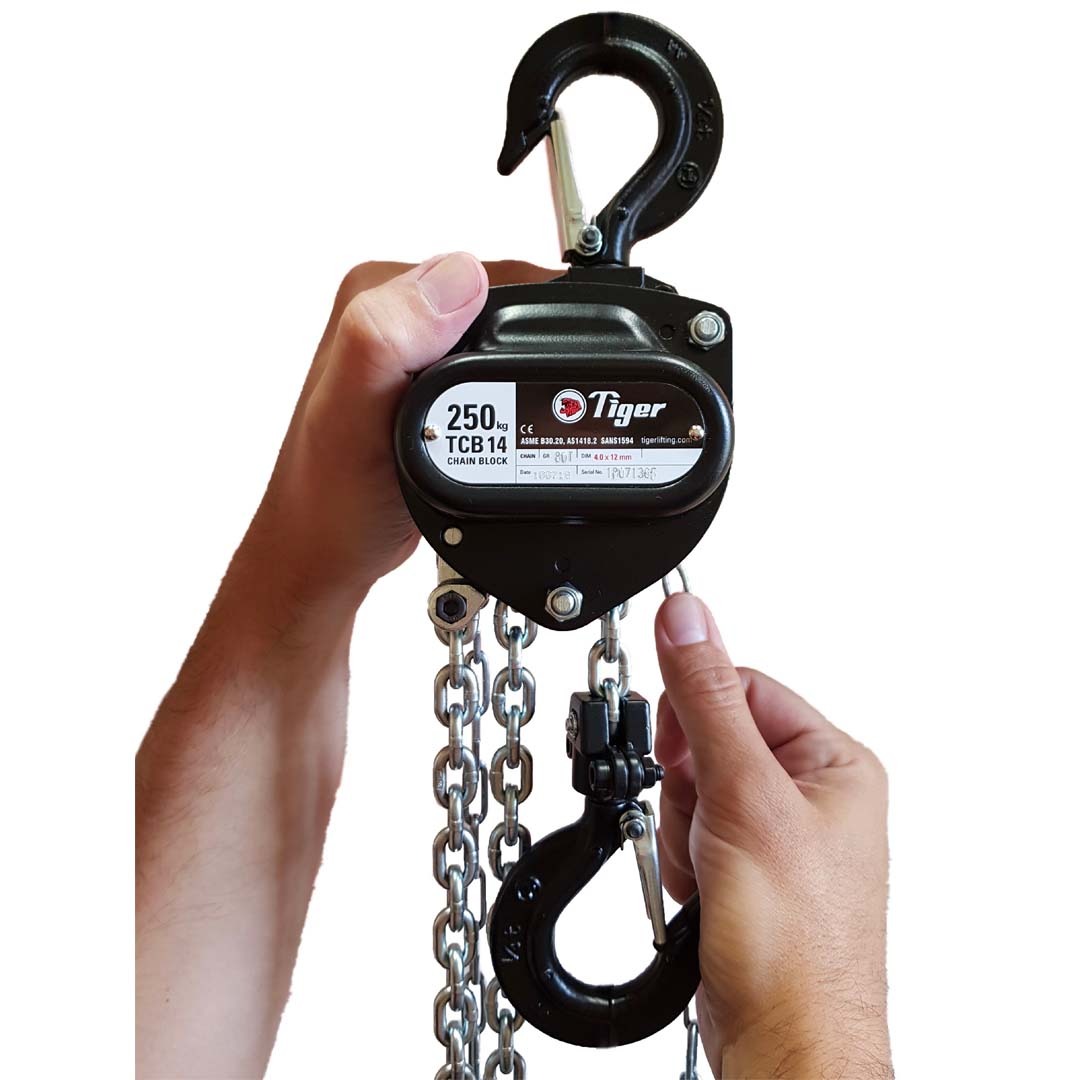

Tiger 250kg Chain Block – CB-0025
One of the smallest and lightest chain blocks available
Product no: CB-0025
- Guaranteed light load protection
- Double cover protection for brake chamber
- Drop forged & heat-treated alloy hooks
- High quality alloy calibrated load chain
- Proof tested to 1.5 times rated capacity
- 3m height of lift as standard but can be chained to exact requirements
- 4:1 Factor of safety
Chain Block TCB
| Product Code | Capacity (tonne) | Effort (kg) | Dimensions | Load Chain Diameter (mm) | Load Chain No. of Falls | Standard HOL (m) | Mass Kg @ Std HOL | Mass for Extra Metre HOL (kg) | Technical Drawing | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F1 | F2 | |||||||||
| CB-0025 | 0.25 | 17 | 64 | 40 | 240 | 36 | 60 | 22 | 31 | 4.0 | 1 | 3 | 3.8 | 0.5 |  |
Hook Data
| Product Code | Capacity (Tonne) | Collar Measurements (mm) | Hook Thickness at Point Shown In Diagram (mm) | Hook Throat Opening (mm) | “EZ Check” Measurement (mm) | Technical Drawing | ||
|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | |||
| CB-0025 | 0.25 | 5 | 8 | 18 | 12 | 26 | 43 |  |
