Description
Our high quality, heavy-duty, easy to adjust trolleys allow you to suspend a lifting appliance or load and easily transport it along the length of a beam.
These units meet and exceed all the requirements within BS EN 13157: 2004+A1:2009 and AS1418.2.
APT – Adjustable Plain/Push Trolley

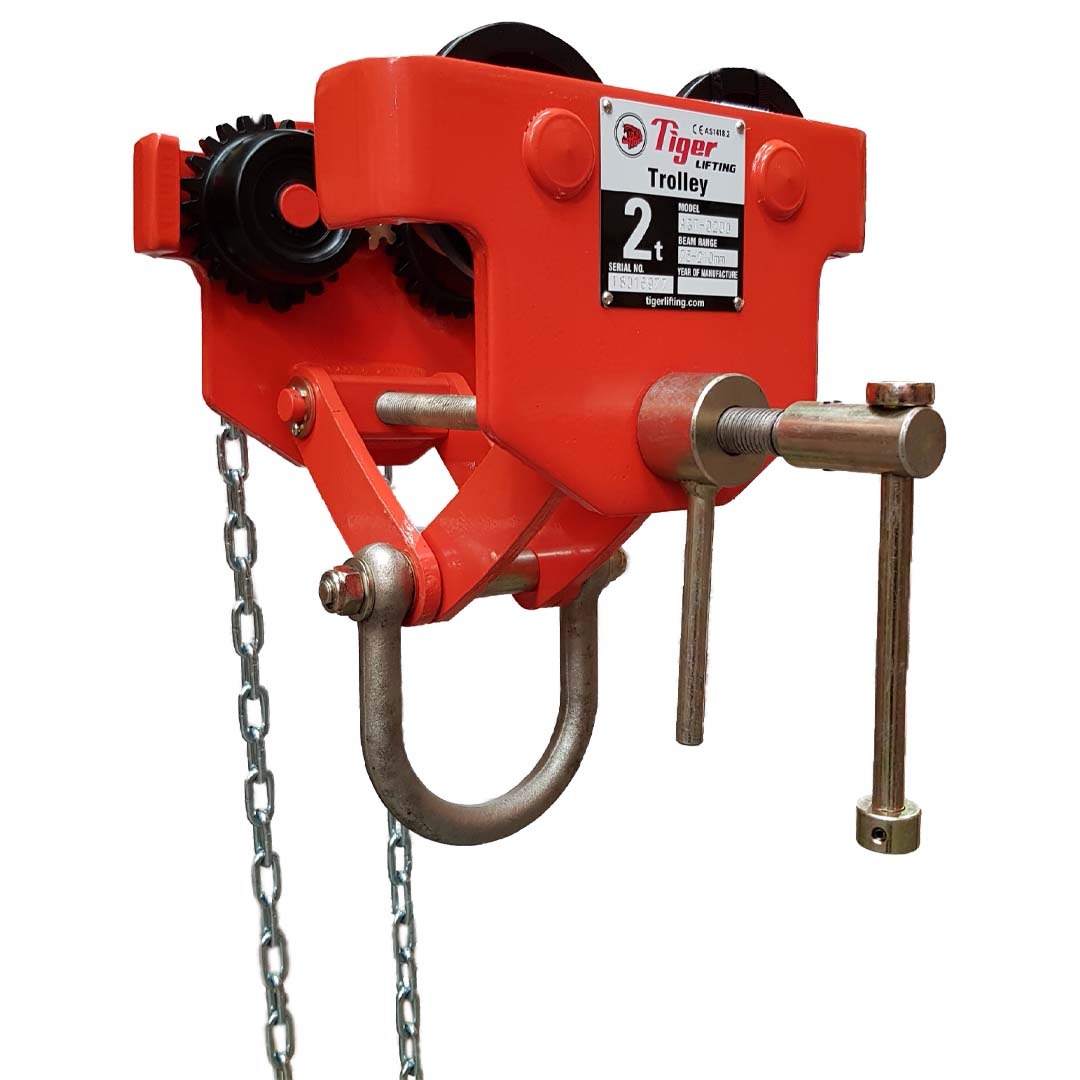

AGT – Adjustable Geared Trolley
Product no: APT AGT
- Range from 1.0t to 10.0t
- Fitted with a screw spindle which allows lockable adjustment to the various flange sizes within its capacity
- The anti-drop plates design ensures extra safety and prevents damage to wheels when contacting end rail stoppers

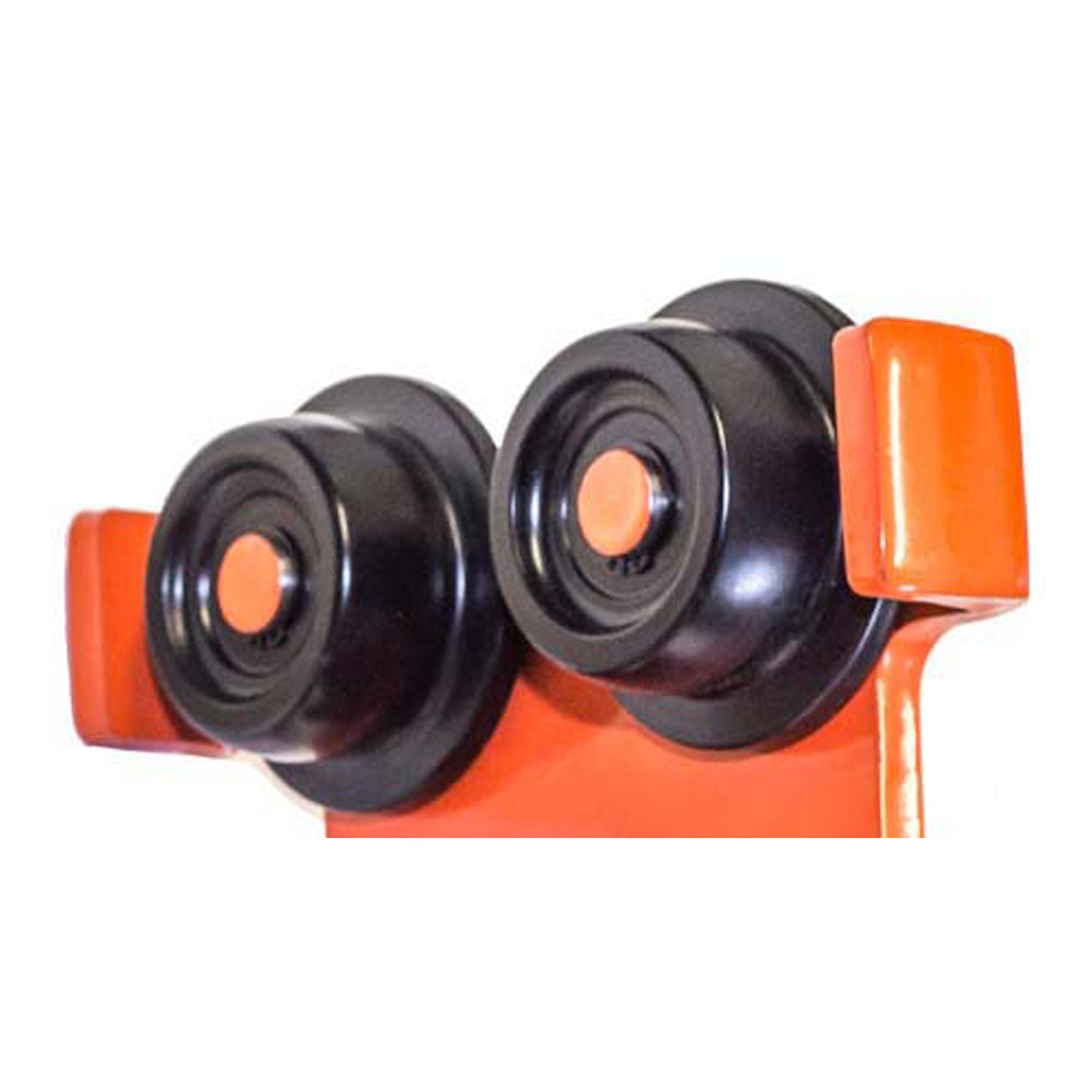

- Wheels run on sealed bearings for smoother rolling with less effort and maintenance
- Powder coated universal wheels suit both tapered and flat flange beams
- Locking device with high clamping force
- Operating temperature of -40°C to +80°C (temperature range of -60°C to +80°C available as an option)
- The 5:1 factor of safety allows for use with manual or powered hoists
Certification
Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC.
Due to our policy of continual product development, dimensions, weights and specifications may change without prior notice. Please check with your Tiger sales team when ordering.

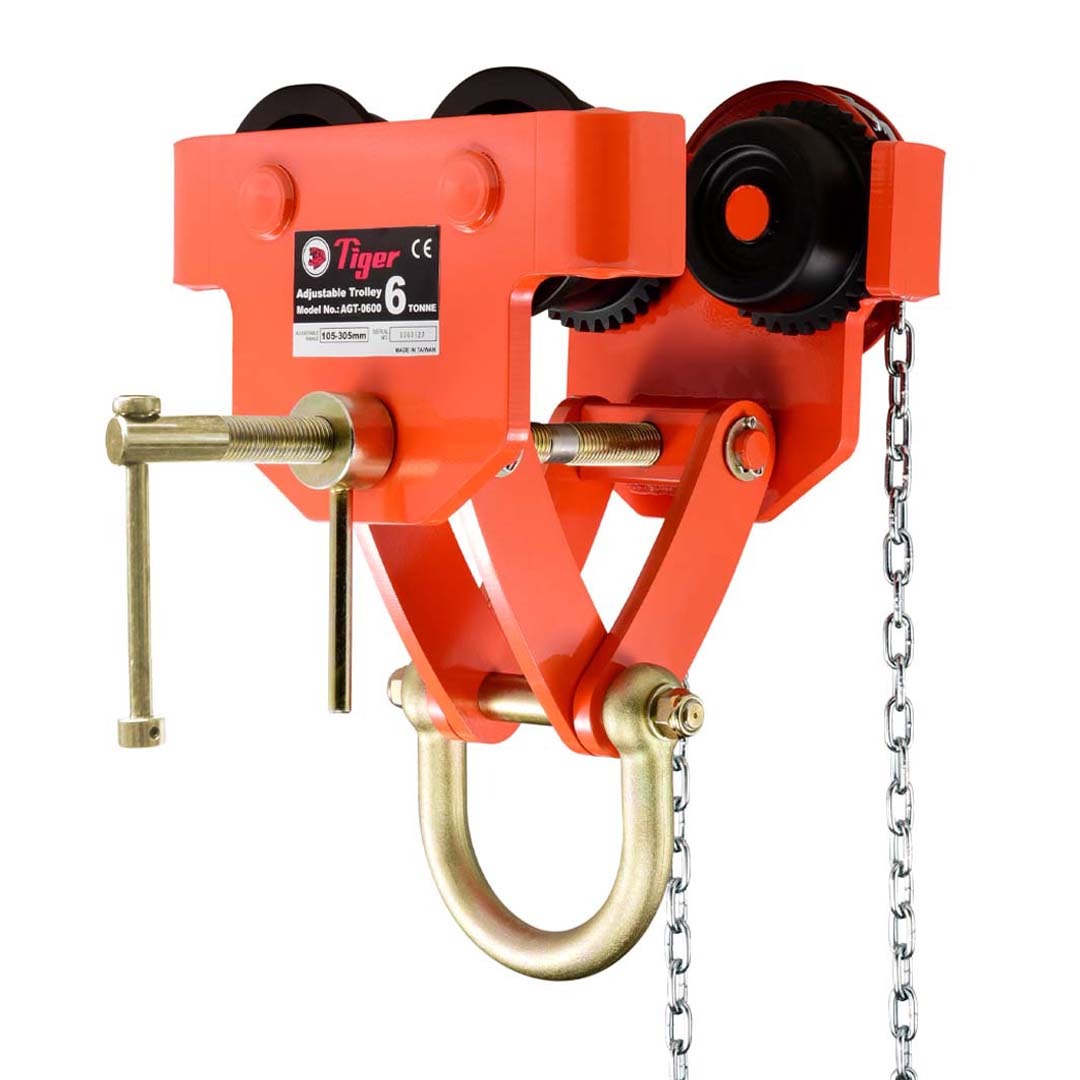

Adjustable Trolley AGT – Geared Trolley
| Product Code | Capacity (tonne) | Track width range (mm) |
Dimensions (mm) | Min. curve radius (m) | Net Weight (kg) | Technical drawing | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | J | K | L | |||||
| AGT-0100 | 1.0 | 75-210 | 391 | 83 | 16 | 110 | 81 | 255-208 | 73 | 27 | 71 | 82 | 1.0 | 13.0 |  |
| AGT-0200 | 2.0 | 75-210 | 391 | 94 | 18 | 123 | 89 | 276-227 | 79 | 38 | 80 | 94 | 1.3 | 17.0 | |
| AGT-0300 | 3.0 | 75-210 | 403 | 105 | 22 | 141 | 112 | 288-241 | 99 | 35 | 97 | 126 | 1.5 | 28.5 | |
| AGT-0600 | 6.0 | 105-305 | 521 | 111 | 27 | 151 | 125 | 358-290 | 115 | 46 | 117 | 137 | 1.5 | 40.0 | |
| AGT-1000 | 10.0 | 160-305 | 606 | 119 | 32 | 170 | 83 | 407-352 | 157 | 33* | 182 | 117 | 2.7 | 120.0 |  |

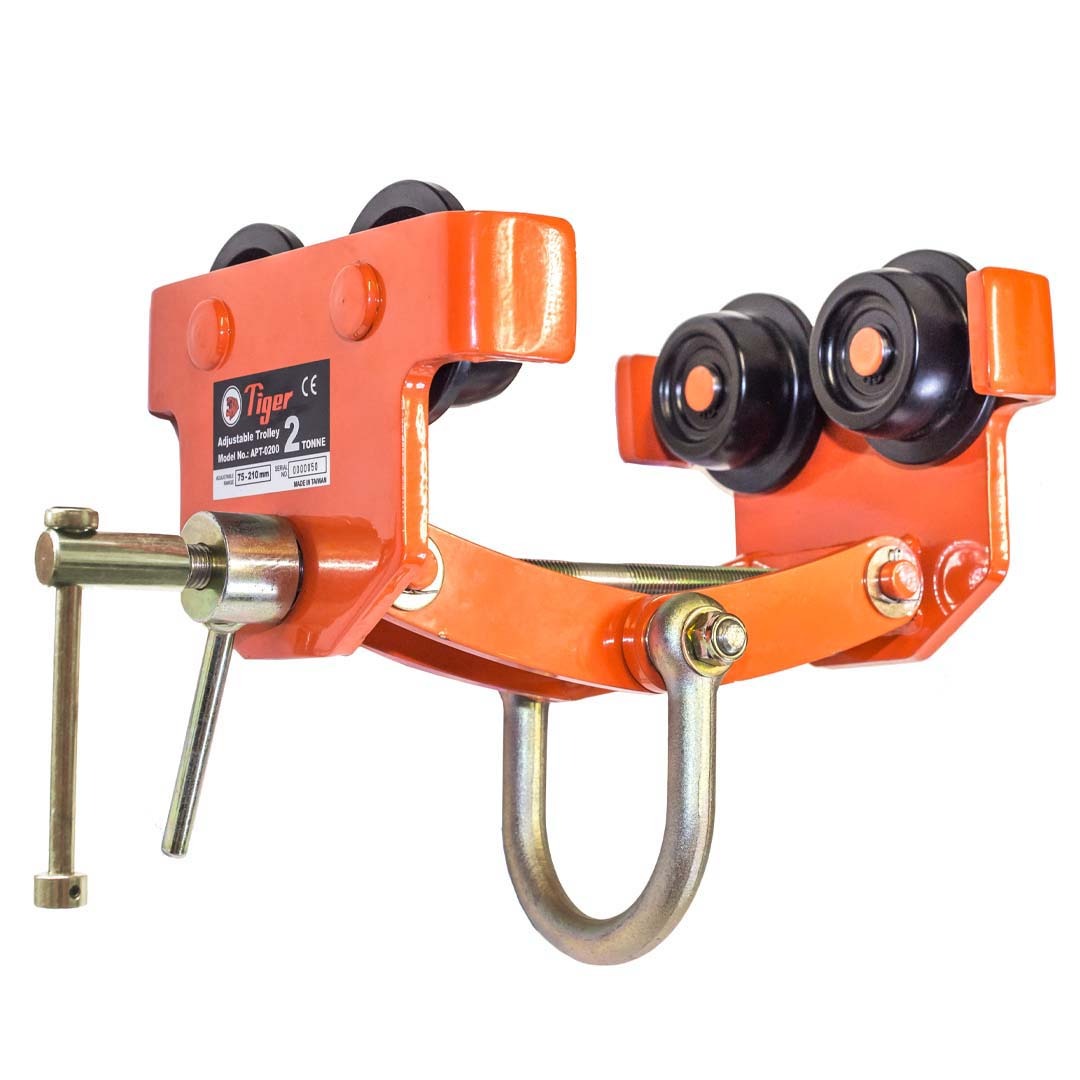

Adjustable Trolley APT – Plain/push Trolley
| Product Code | Capacity (tonne) | Track width range (mm) |
Dimensions (mm) | Min. curve radius (m) | Net Weight (kg) | Technical drawing | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | J | K | |||||
| APT-0100 | 1.0 | 75-210 | 391 | 83 | 16 | 110 | 81 | 255-208 | 73 | 27 | 71 | 1.0 | 9.5 |  |
| APT-0200 | 2.0 | 75-210 | 391 | 94 | 18 | 123 | 89 | 276-227 | 79 | 38 | 80 | 1.3 | 13.5 | |
| APT-0300 | 3.0 | 75-210 | 403 | 105 | 22 | 141 | 112 | 288-241 | 99 | 35 | 97 | 1.5 | 23.0 | |
| APT-0600 | 6.0 | 105-305 | 521 | 111 | 27 | 151 | 125 | 358-290 | 115 | 46 | 117 | 1.5 | 35.5 | |
| APT-1000 | 10.0 | 160-305 | 606 | 119 | 32 | 170 | 83 | 407-352 | 157 | 33* | 182 | 2.7 | 110.0 |  |
