Description

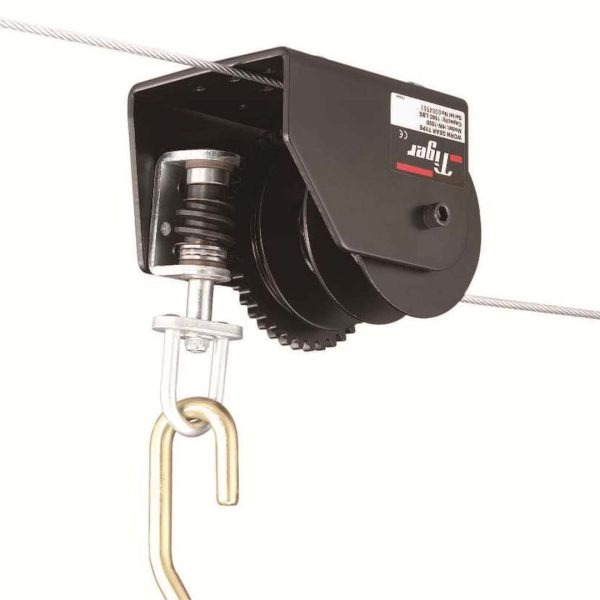

This winch can also be ceiling mounted.
Product no: HW-2000
- 2000lb/900kg capacity

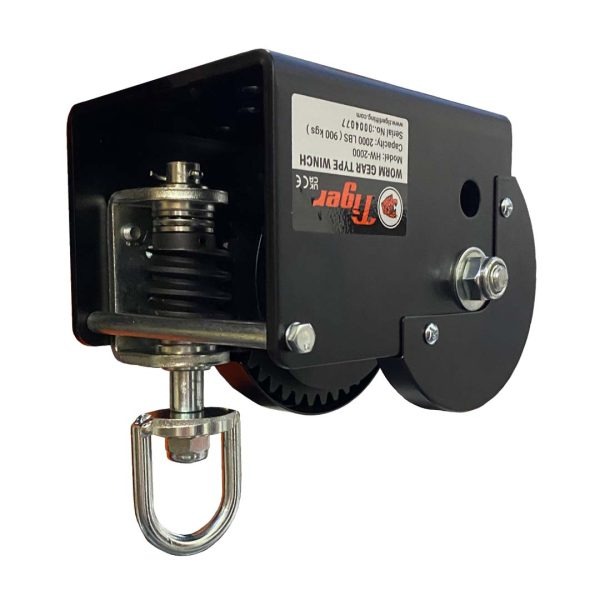

- Can be ceiling mounted with loop drive
- Operating temperature -40°C to +80°C (temperature range of -60°C to +80°C available as an option)

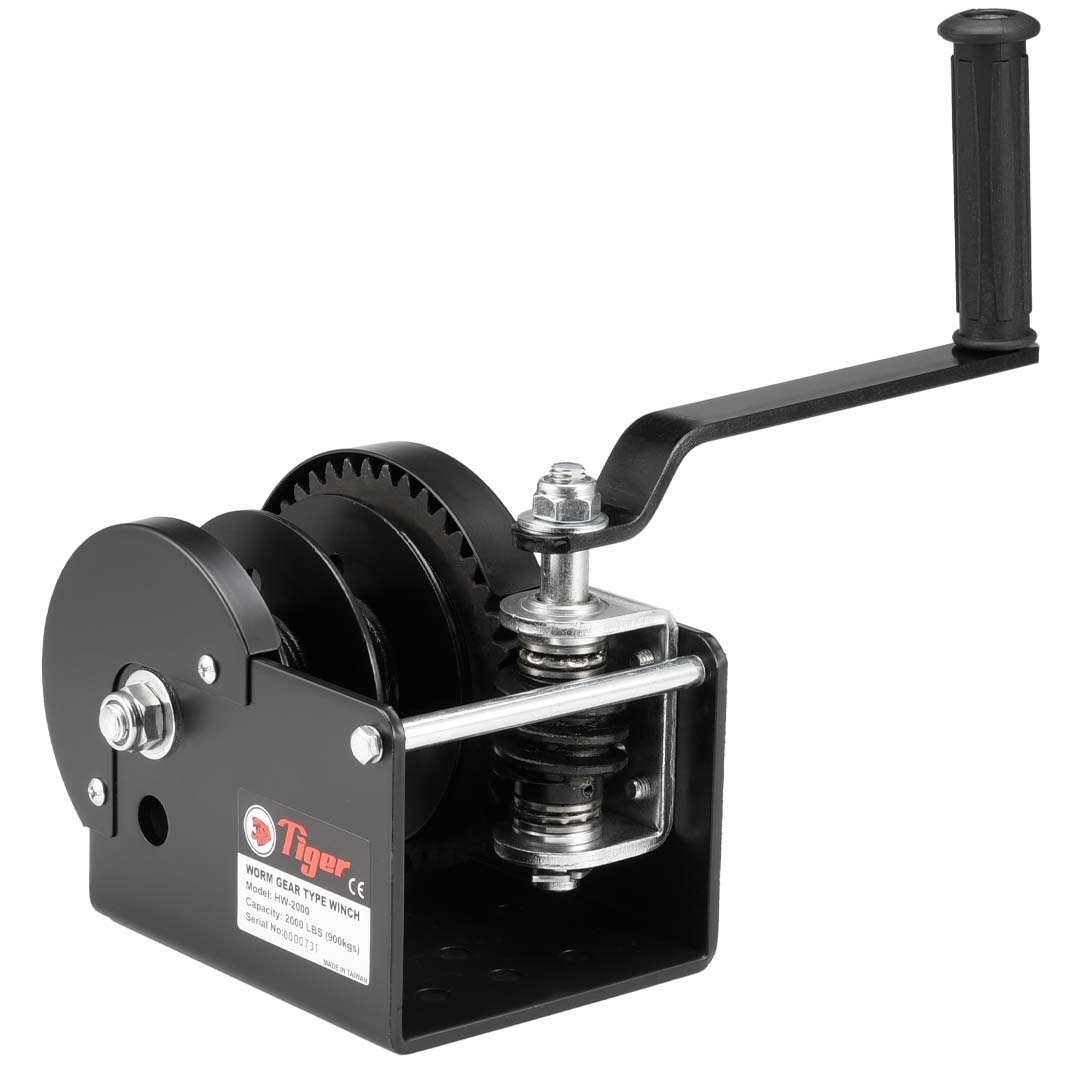

- Available in regular or split reel, which allows for operation of two line or cables for greater versatility

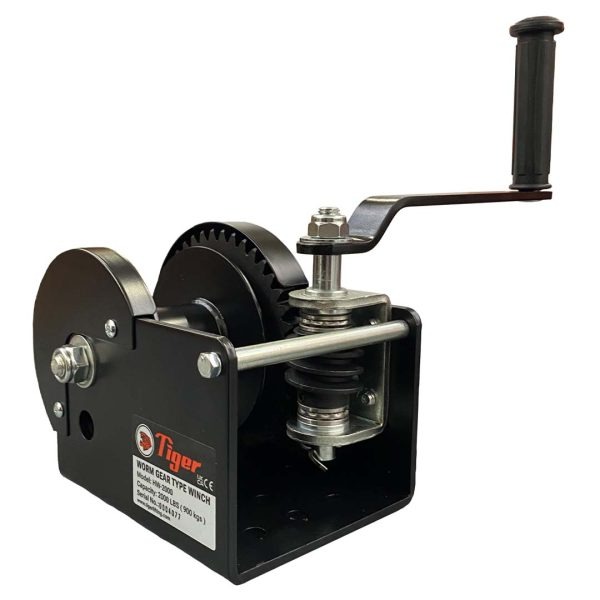

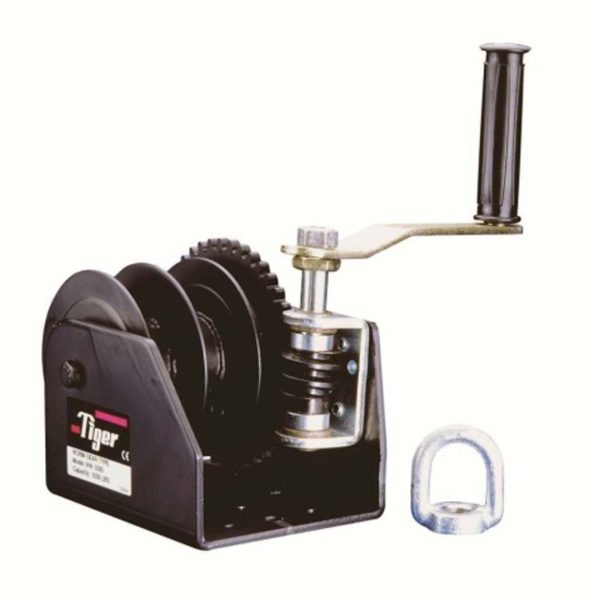

- Available in handle or loop drive models
Certification:
Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC.
Temperature Range:
Operating temperature -40°C to +80°C (temperature range of -60°C to +80°C available as an option)
Due to our policy of continual product development, dimensions, weights and specifications may change without prior notice. Please check with your Tiger sales team when ordering.
| Product Code | Pulling Capacity (lbs/kg) | Hand Force Required (kg) | Gear Ratio | Hub Diameter (mm) | Handle Length (mm) | Unit Weight (with handle) (kg) | Unit Weight (with loop) | Cable Diameter (mm/inch) | Cable Storage Cap. (m) | Technical Drawing |
|---|---|---|---|---|---|---|---|---|---|---|
| HW-2000-S (Split reel) | 2000/900 | 4.5 | 41:1 | 48 | 190 | 5.7 | 5.4 | 4.8/ 3/16 | 8.8 per side |  |
| HW-2000 | 2000/450 | 2.25 | 41:1 | 48 | 190 | 5.5 | 5.2 | 4.8/ 3/16 | 17.6 | |
