Description

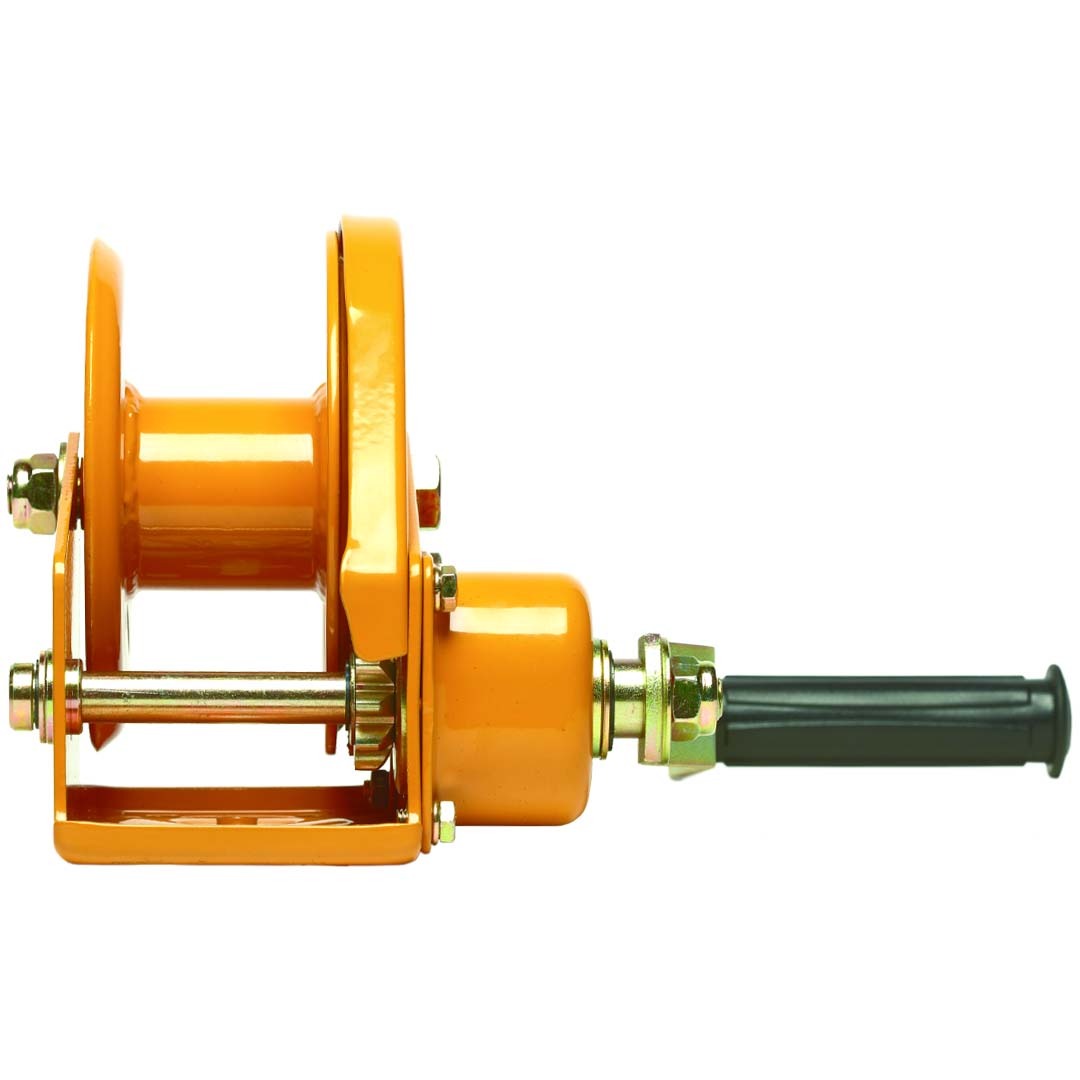

Noiseless 1200lb model available.
This model is equipped with a patented quiet brake design that is virtually silent and fully automatic. Best suited to those locations where quiet is required, such as schools, hospitals and theatres.
Product no: BHW-N
Hand Winch
| Product Code | Pulling Capacity (lbs/kg) | Lifting Capacity (lbs/kg) | Gear Ratio | Hub Diameter (mm) | Handle Length (mm) | Unit Weight (kg) | Cable Diameter (mm/lbs) | Cable Storage Cap. (m) | Strap Storage Cap. (m) | Technical Drawing | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1st Layer | Mid Layer | Last Layer | ||||||||||
| BHW-1200N | 1200/550 | 1200/550 | 864/392 | 600/275 | 4.1:1 | Ø50 | 210 | 3.5 | Ø5/Ø3/16 | 23 | 8.5 |  |
Winch Straps (for Pulling Only)
| Product Code | Description | Width (mm) | Thickness (mm) | Breaking Load (Kg) | Available For |
|---|---|---|---|---|---|
| TG-48 | 6 meters with safety hook | 48 | 1.2 | 2068.5 | BHW-800 & BHW-1200 |
Winch Wire Rope
| Product Code | Description | Diameter (mm) | Breaking Load (Kg) | Available For |
|---|---|---|---|---|
| WWR-05-20 | 20 meters with safety hook | 5 | 2000 | BHW-1200 |
